Adjusting Micro Switch-Outer Fold Cylinder

1. Unfold boom.

2. Loosen flag assembly (A) on outer fold cylinder (B).

3. Fold outer boom section completely.

4. Move flag assembly until micro switch (C) just clicks.

5. Rotate flag until it is centered on switch when base end of cylinder is parallel with ball.

6. Tighten flag at that position.

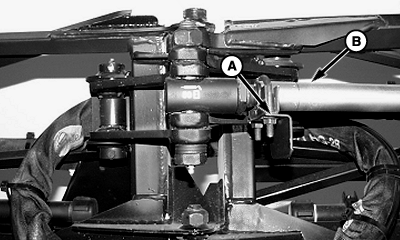

A-Flag Assembly
B-Cylinder, Outer Fold
C-Micro Switch
