Adjusting Micro Switch-Inner Fold Cylinder

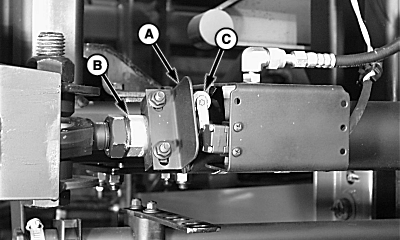

1. Loosen flag assembly (A) on inner fold cylinder (B).

2. Unfold inner boom section completely.

3. Move flag assembly until micro switch (C) just clicks.

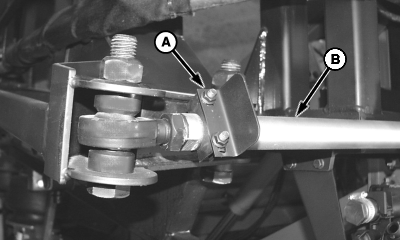

4. Rotate flag as needed so that it is centered on switch when both ends of the cylinder are parallel with balls.

5. Tighten flag at that position.

A-Flag Assembly
B-Cylinder, Inner Fold
C-Micro Switch
