Check Hydraulic Oil Level-Daily

NOTE: Retract all hydraulic cylinders including wheel adjust cylinders when checking hydraulic oil level.

Hydrostatic system and hydraulic system use the same reservoir.

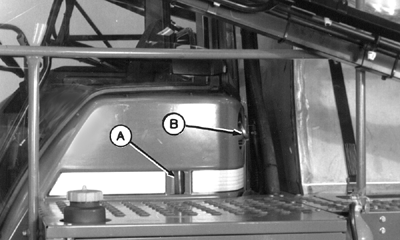

Observe oil level in site tube (A) with machine on level surface and engine stopped. Oil level should be at the 1/2 to 2/3 level on the tube.

If oil level is below the lower mark, remove filler cap (B) and add hydraulic oil. (See HYDROSTATIC DRIVE OIL in this section.)

A-Site Tube
B-Filler Cap

AG,OUO1011,921 -19-27JUL99-1/1
