Lubricate Suspension Assemblies-Daily

Lubricate front and rear suspension assemblies with ONLY John Deere moly high temperature EP grease. Use three pumps of grease at each fitting (A).

IMPORTANT: Use of other greases in the suspension system is not recommended. Use of other greases can result in premature wear of the suspension components.

NOTE: Three grease fittings are on each front suspension. Two grease fittings are on each rear suspension.

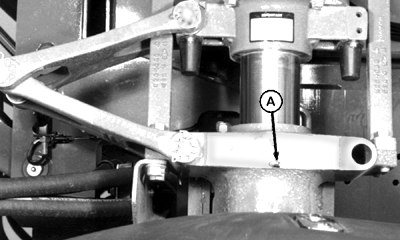

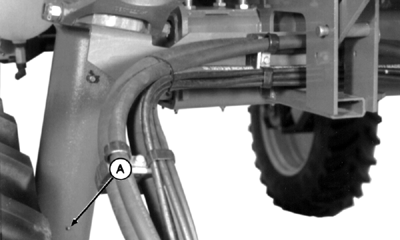

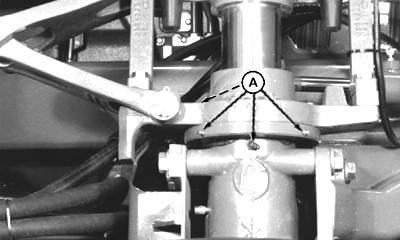

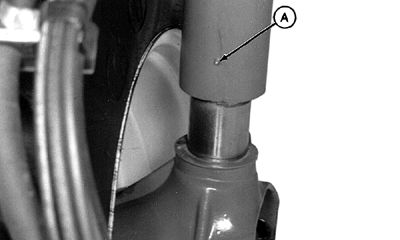

A-Grease Fitting

AG,OUO1011,924 -19-27JUL99-1/1
