Clean Flowmeter-As Required

CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Drain solution and clean flowmeter in an area where people, animals, vegetation and water supply, etc. cannot be contaminated.

1. Turn valve (A) to "SOLUTION TANK" position.

2. Close valves (B), (C) and (D).

3. Open valve (E) and collect solution in a bucket or suitable container.

A-Valve
B-Valve
C-Valve
D-Valve
E-Valve

AG,OUO1011,930 -19-27JUL99-1/2

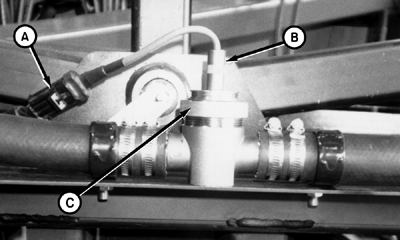

4. Disconnect wiring harness from electrical connector (A) on sensor (B).

5. Unscrew flowmeter insert (C) and remove.

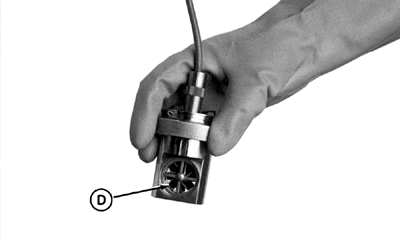

6. Clean insert with clean soapy water. Make sure turbine (D) turns easily. If the turbine still does not turn easily, use John Deere Brake and Parts Cleaner (Part No. TY16041).

7. Install insert in flowmeter.

8. Attach electrical connector to sensor.

A-Electrical Connector
B-Sensor
C-Flowmeter Insert
D-Turbine

AG,OUO1011,930 -19-27JUL99-2/2
