Lubricate Steering Cylinder Ball Joints and Rotating Steering Arms-100 Hours

Lubricate steering cylinder ball joints (A) and rotating steering arms (B) every 100 hours.

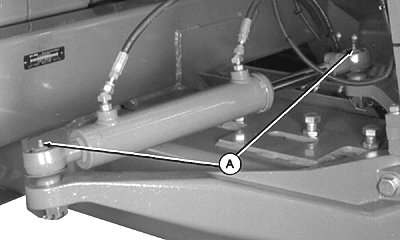

A-Steering Cylinder Ball Joints

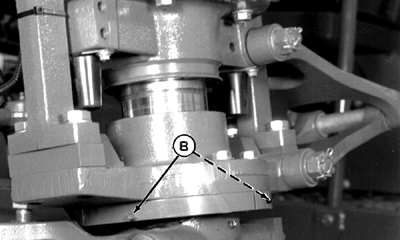

B-Rotating Steering Arms

N42173RX
N42175DV

AG,OUO1011,938 -19-27JUL99-1/1
