Tighten Lug Nuts-100 Hours

IMPORTANT: To prevent machine damage from improper wheel hardware lubricated torque, any time lug nuts are removed, always apply oil (SAE 30W) to lug bolts before attaching lug nuts.

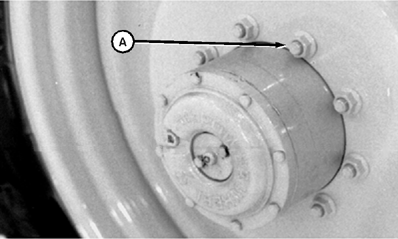

Tighten wheel lug nuts (A) in a crisscross pattern to specification after first day (10 hours) of use.

N42173SC


A-Wheel Lug Nuts

Item Measurement Specification

Lug Nuts

Lubricated Torque 244 N·m
(180 lb-ft)

IMPORTANT: Damage to planetary hub and wheel can occur if the correct lug nut torque is not maintained. Tighten lug nuts in a crisscross pattern to specification. Tighten wheel lug nuts after first 10 hours of use and every 10 hours thereafter until correct torque is maintained. Check wheel lug nuts torque after every 100 hours of use.

AG,OUO1011,940 -19-27JUL99-1/1
