Dimensions-All Machines

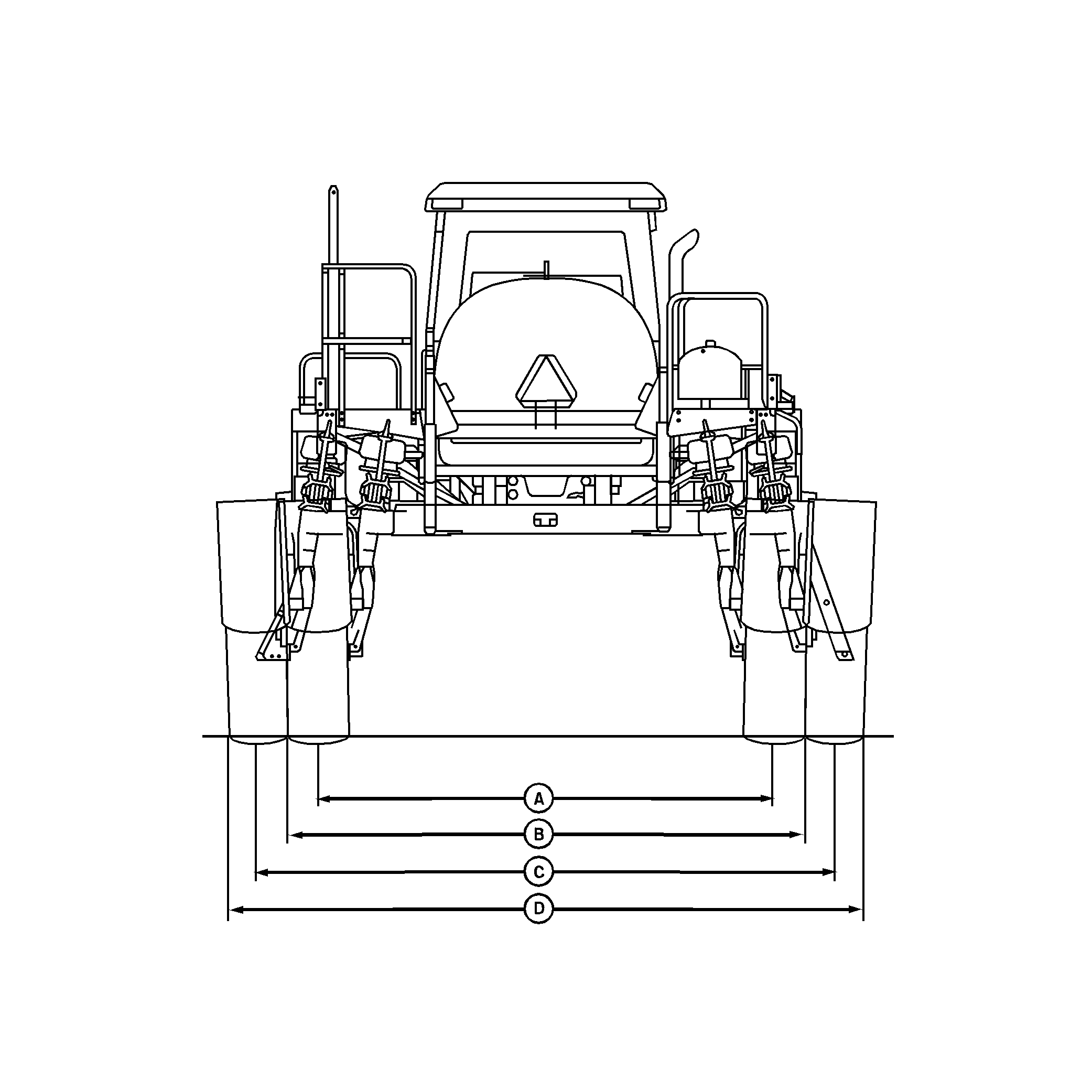

N42173EK


A-3048 mm (120 in.)


B-3442 mm (135.5 in.)1


C-3861 mm (152 in.)


D-4001 mm (157.5 in.)1

1Machines Equipped With 385/85R34

NX1688,1005,B6A -19-24NOV97-1/2

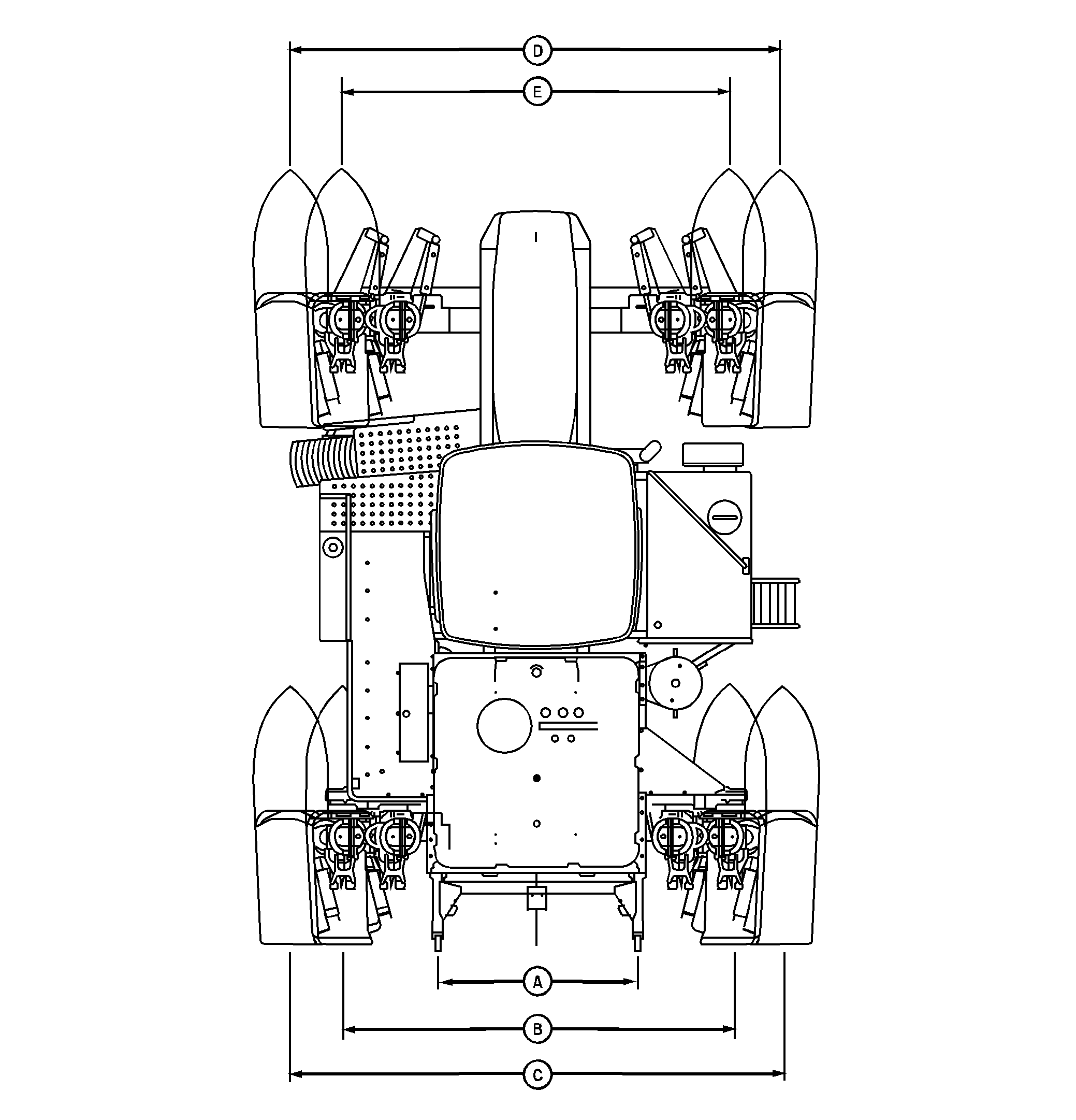

N42173AA


A-1568 mm (61.75 in.)
B-3048 mm (120 in.)


C-3861 mm (152 in.)


D-3861 mm (152 in.)


E-3048 mm (120 in.)

NX1688,1005,B6A -19-24NOV97-2/2
