OMN303758: 4700 Self-Propelled Sprayer(N04700X006001- ), Block File: NX1688_1005_DM_19

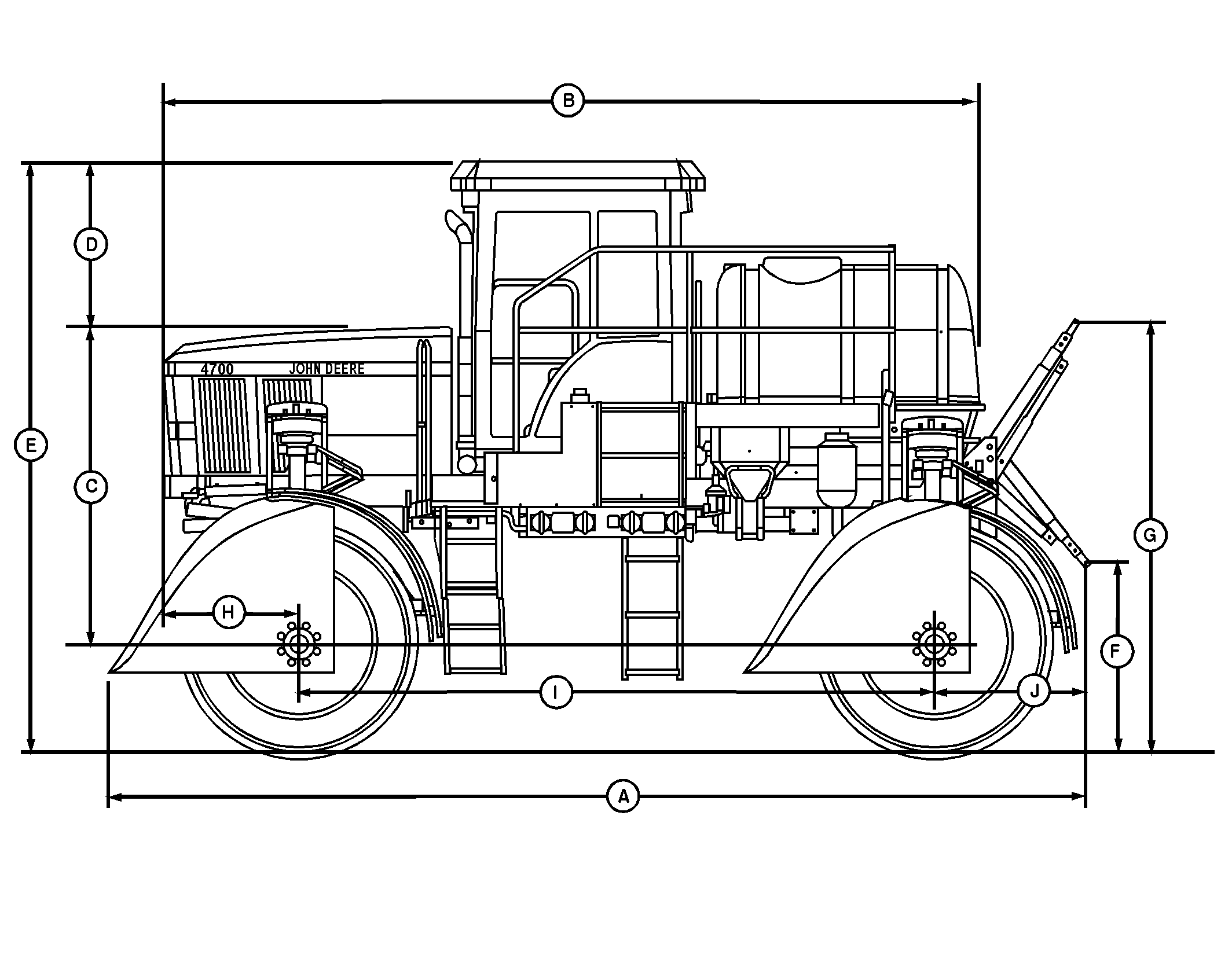

Dimensions-24.4 m and 27.4 m (80 and 90 ft) Boom

A-6639 mm (261.36 in.)
B-5323 mm (209.57 in.)

C-2023 mm (79.65 in.)
D-1067 mm (42 in.)
E-3795 mm (149.41 in.)¹

F-519 mm (20.45 in.)
G-2551 mm (100.45 in.)
H-882 mm (34.72 in.)

I-4124 mm (162.36 in.)
J-1282 mm (50.46 in.)

NOTE: The following measurements are maximum heights with air springs properly adjusted and a full solution tank.

¹Boom in lowest cradle position-3832 mm (150.85 in.). Boom in middle cradle position-3973 mm (156.40 in.). Boom in highest cradle position-4115 mm (162 in.).
