Reduce Travel Speed

causym CAUTION: To avoid possible serious injury or death to you or others, always use seat belt properly.

1. To slow machine, pull back on hydro lever (A) for primary braking.

NOTE: Braking will occur from hydro system.

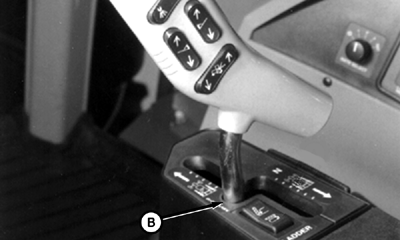

2. For more aggressive (faster) braking move hydro lever into "PARK" position (B). Be prepared for a rapid decrease in speed. Secondary braking stops the machine very quickly.

NOTE: Dynamic (secondary) braking will now occur from front caliper brakes.


A-Hydro Lever
B-"PARK" Position

N42173CR
N42175HT

NXH8,64020,D117 -19-15APR98-1/2

causym CAUTION: Pressing emergency brake switch will cause machine to suddenly stop and can cause serious injury or death. Wear seat belt. Be prepared for rapid decrease in speed. Only use emergency brake switch in an emergency braking situation.

IMPORTANT: If emergency brake is pressed while machine is moving, rear brakes will need to be inspected. Contact your John Deere dealer.

3. Park brakes are automatically applied when engine is shut off, so emergency brake switch does not need to be engaged.

If primary and/or secondary braking fails, or emergency braking situation occurs, put the hydro lever in PARK position and depress emergency braking switch (C). Prepare for a very rapid decrease in speed.

NOTE: Dynamic braking will now occur from rear brakes also.

N51037


A-Emergency Brake Switch

NXH8,64020,D117 -19-15APR98-2/2
