Towing the Sprayer

CAUTION: Avoid serious injury or death to you or others. To prevent machine from rolling, engage and disengage hubs only when machine is attached to towing vehicle.

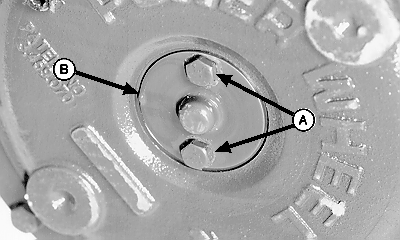

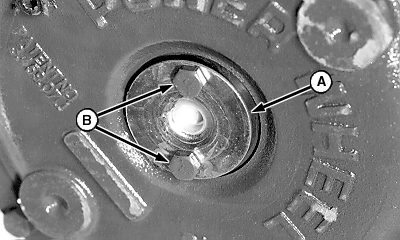

Remove two cap screws (A) and reverse center plate (B) so projection depresses hub center pin (C). Replace cap screws and tighten evenly, alternating one turn on each bolt until center plate is tight.

IMPORTANT: Towing the 4700 Sprayer is not recommended. The 4700 Sprayer should only be towed if the machine is stuck or cannot move under its own power. It should only be towed a short distance and at very slow speeds of 0 to 5 kph (0 to 3 mph).

Always disengage planetary hubs if towing to prevent machine damage.

NOTE: Disconnecting drive motors allows all wheels to turn free. Reverse center plates after towing to engage motors and return drive system to normal operation.

A-Cap Screws
B-Center Plate
C-Hub Center Pin
