Run-Page 1 of SPRAYSTAR™ System

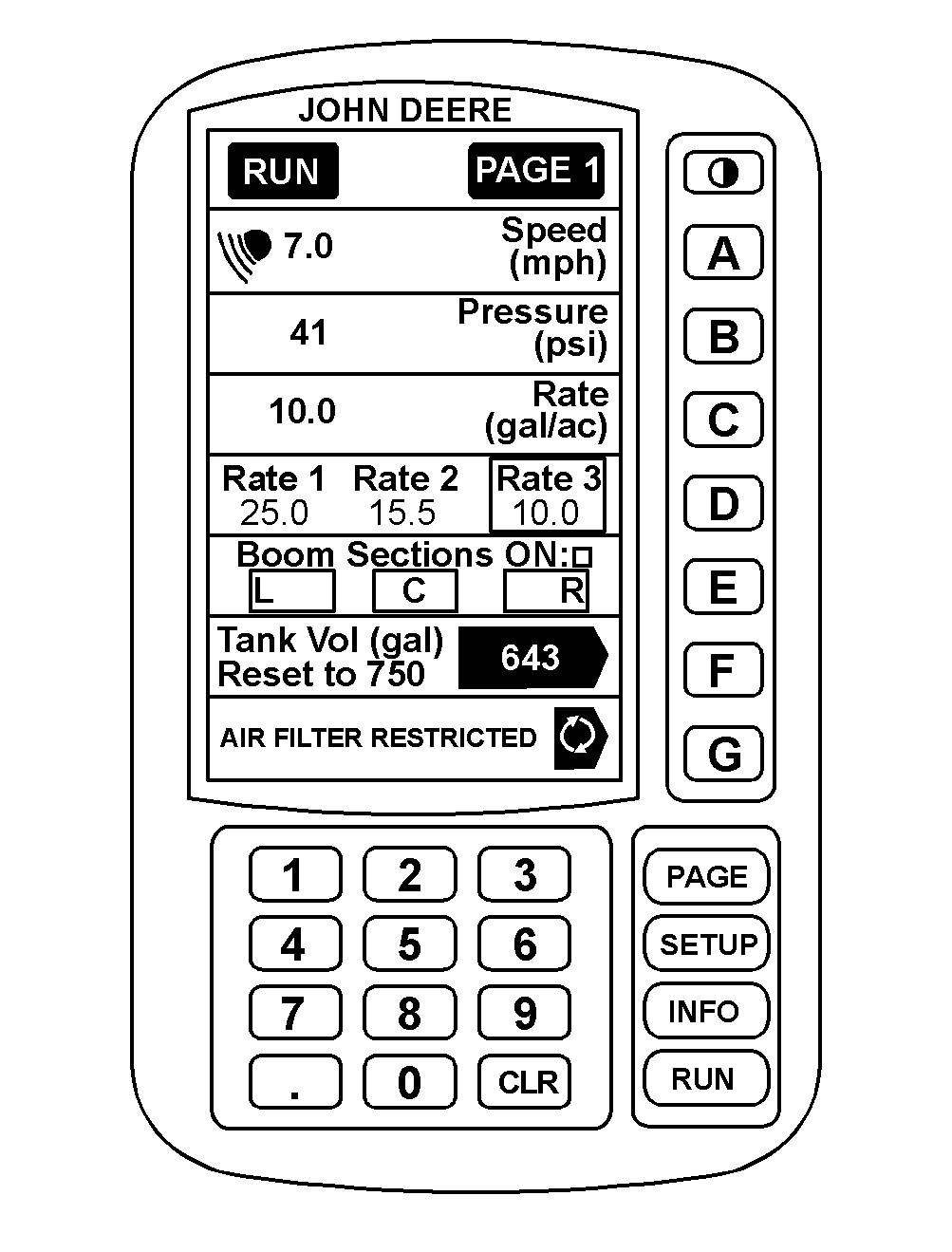

Page 1 of the RUN menu displays the following:

Line A -Speed: Speed the sprayer is traveling. Radar symbol appears when radar is operating.

Line B -Pressure: Pressure at the boom section shut-off valves of wet system in kPa (psi).

Line C -Rate: Application rate that the sprayer is applying.

Line D -Three Targeted Rates: Application rates being targeted, programmed by operator.

OR
Manual Target Pressure: Pressure programmed by operator independent of speed.

(The rate select knob is located on console. To select a rate, turn to Rate "1", "2", or "3". To select manual setting, turn rate select knob to "0").

Line E -Boom Sections: Indicates which booms are spraying. (Boxes around left ["L"], center ["C"] or right ["R"] indicate which section is spraying.)

Fence Row Nozzles: When fence row nozzles are turned on, an "LF" or "RF" will appear above boom sections.

Line F -Solution Tank Volume: Indicates how much solution is left in solution tank. When reset, SPRAYSTAR ™ will count down tank volume as solution is sprayed out.

Line G -Caution statements displayed in this location. These caution statements are for the chassis and sprayer sensors.
