Setup Sprayer

The Setup Sprayer menu allows the operator to program information that is needed for the sprayer, such as application rates, tank volume, calibration values and date. All information that is required for the sprayer to correctly operate that can be changed is in this menu. Two pages of the setup menu exist.

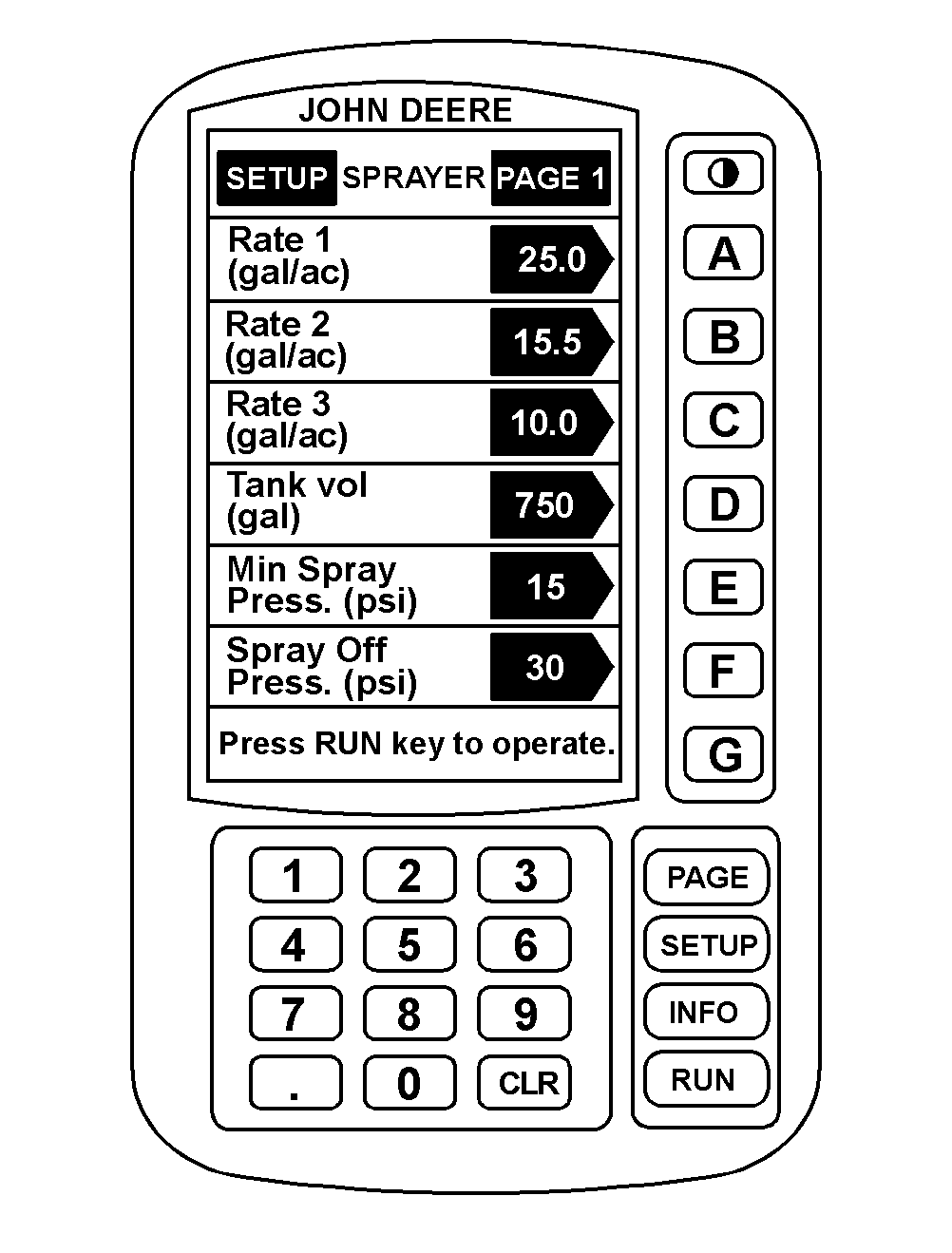

SETUP SPRAYER-Page 1

On page 1 of the Setup mode, the following are displayed and can be changed:

Application Rates 1, 2, or 3- Where the target application rates are programmed into SPRAYSTAR ™ .

Tank Volume -Where tank volume is programmed into SPRAYSTAR ™ .

Spray On Pressure -Where the spray on pressure is programmed into SPRAYSTAR ™ . Spray on pressure is the minimum pressure maintained while spraying.

Spray Off Pressure -Where the spray off pressure is programmed into SPRAYSTAR ™ . Spray off pressure is the pressure maintained while not spraying. Typically used to maintain high pressure setting for agitation when not spraying.

SPRAYSTAR is a trademark of Deere & Company.

NXH8,M68420,D12 -19-15JUL98-1/1
