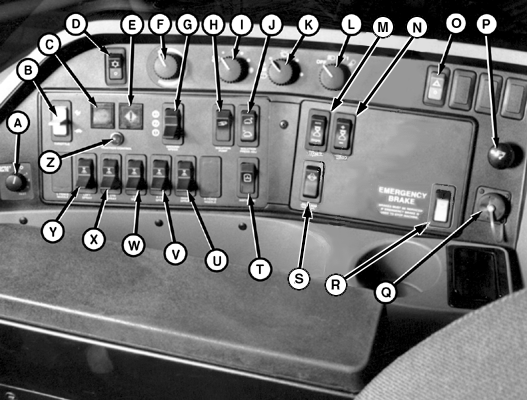

A-Rate Select Switch
B-Throttle Switch
C-Stop Indicator
D-Air Conditioning Switch
E-Caution Indicator
F-Temperature Control Switch
G-Speed Range Switch
H-Solution Pump Switch
|
I-Blower Speed Switch
J-Solution Pressure Adjust Switch
K-Front Wiper Switch
L-Light Switch
M-Foam Marker Control Switch
N-Foam Rate High/Low Switch
|
O-Hazard Light Switch
P-Cigarette Lighter
Q-Accessory Electrical Outlet
R-Emergency Brake Switch
S-Traction Control Switch
T-Agitation Switch
U-Right Spray Control Switch
V-Right Center Spray Control Switch (Option)
|
W-Center Spray Control Switch
X-Left Center Spray Control Switch (Option)
Y-Left Spray Control Switch
Z-Traction Control Indicator
|
