Continuous Caution

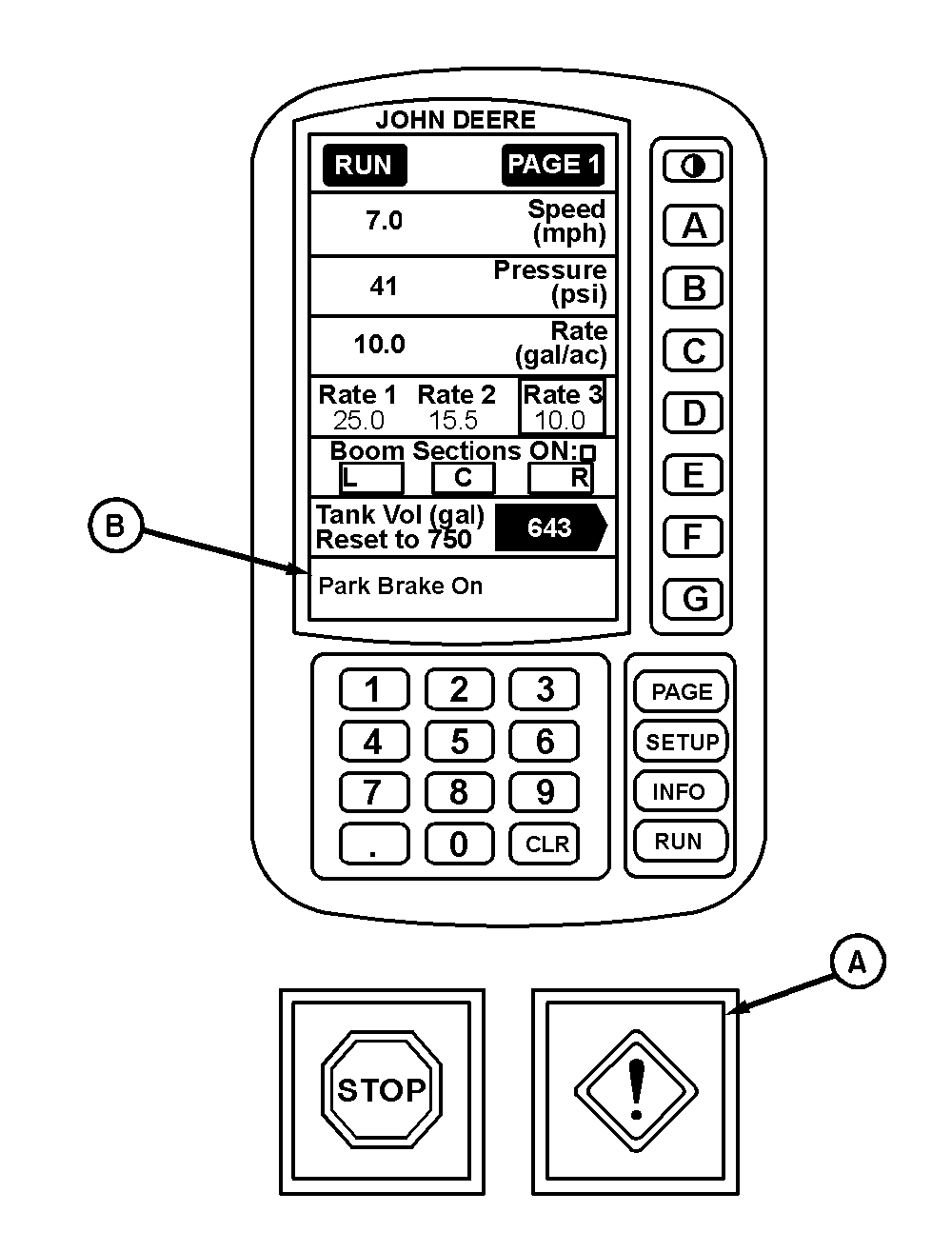

The caution lamp (A) lights on the right-hand console. A caution message (B) appears in the SPRAYSTAR ™ display's "G" segment. The message remains visible as long as the condition persists.

An audible alarm is sounded when the continuous caution first appears.

Example: Park Brake On or Ladder Down.

A-Caution Lamp
B-Caution Message

SPRAYSTAR is a trademark of Deere & Company.

NXH8,M68420,D66 -19-15JUL98-1/2

When in SETUP or INFO modes and a caution situation arises, a full-page caution will appear.

NXH8,M68420,D66 -19-15JUL98-2/2
