Front Console
NOTE:
Starting aid switch is a factory installed option. Switch is inactive without option installed.

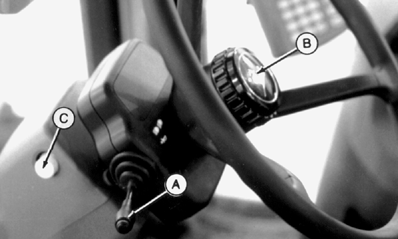

A-Turn Signal Lever, Dimmer Switch, Horn, Flash-To-Pass
B-Steering Wheel Telescope Release
C-Cold Weather Starting Aid (Thermostart) Switch

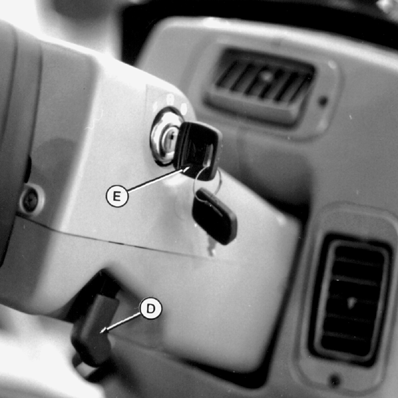

D-Steering Wheel Tilt Adjust
E-Key Switch

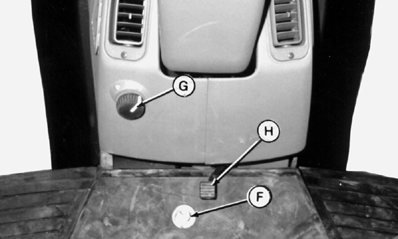

F-Boom Fold Mode/Roll Bias Option Switch
G-Air Flow Direction Knob
H-Steering Column Foot Release
|
