Replace Hydrostatic and Hydraulic Filters-500 Hours

1. Remove hydrostatic filters (A) and hydraulic filter (B).

2. Lubricate new filter packing with John Deere TURF-GARD ® 10W30 only.

3. Install and hand tighten filter elements.

4. Check oil level and add as required.

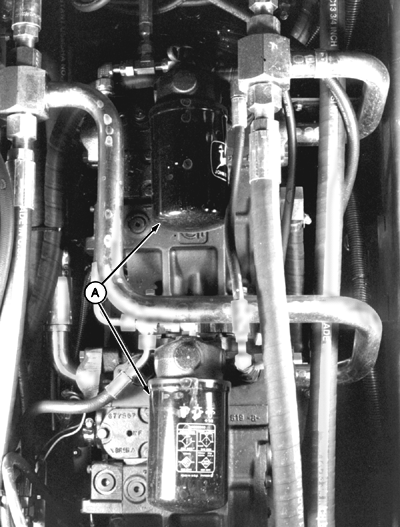

A-Hydrostatic Filters

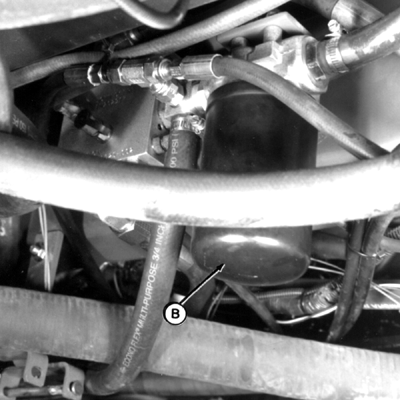

B-Hydraulic Filter

TURF-GARD is a trademark of Deere & Company

NX,HYD,S3 -19-04JAN99-1/1
