Change Hydraulic Oil-500 Hours

NOTE: Approximately 57 L (15 gal) of John Deere TURF-GARD ® 10W30 oil is needed to fill hydraulic system.

1. Park machine on flat level surface.

2. Drain hydraulic reservoir by removing case drain line to front motor.

TURF-GARD is a trademark of Deere & Company

NX,HYD,S5 -19-15JAN99-1/2

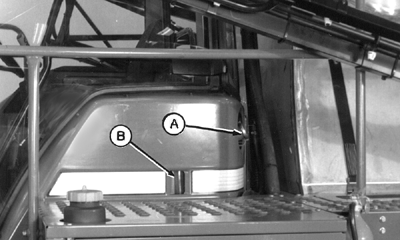

3. Remove filler cap (A) and fill hydraulic reservoir with specified hydraulic oil to 1/2 to 2/3 full on sight tube (B).

A-Filler Cap
B-Sight Tube
