Lubricate Drive Shaft U-Joints-Every 250 Hours

IMPORTANT: Avoid damage to needle bearing. Do not use grease containing more that 1% molybdenum disulfide. Use TY6341 grease or other greases that meet the following:

  • John Deere specification JDM J13E4
  • NLGI Performance Classification GC-LB
  • NLGI No. 2 standard specification

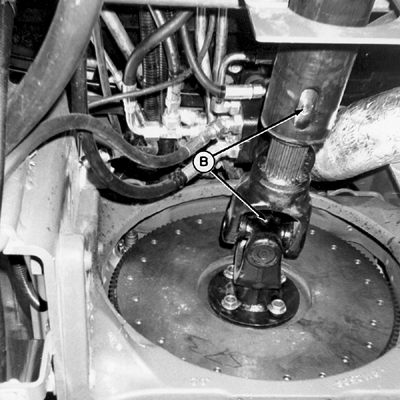

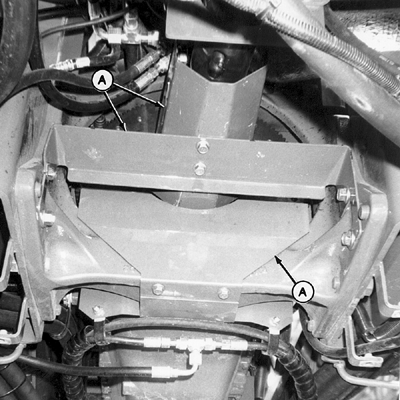

1. Remove metal shields (A) from under drive shaft on engine end of drive shaft. Grease fittings (B) and install shields.

2. Lubricate main drive shaft U-joint grease fitting (C) on hydrostatic pump end of drive shaft.

NOTE: Drive shaft has a total of three grease fittings.


A-Shields
B-Grease Fitting
C-Grease Fitting

N42184DH
N42184DI
N42184DJ

NX,OM470036,N12 -19-17NOV97-1/1
