Hydro Lever

To move machine forward, move hydro lever (A) slightly to the right and forward. Ground speed increases when lever is pushed forward.

To move machine rearward, move lever to extreme right and rearward. Move lever carefully. Ground speed increases as lever is pulled rearward.

Push switch (B) to raise and lower boom.

Use switch (F) to level right-hand boom and with boom fold mode switch on cab floor to unfold right-hand boom; switch (C) to level left-hand boom and with boom fold mode switch on cab floor to unfold left-hand boom.

Press switch (D) to turn spray system ON and OFF.

Press switch (E) to operate foam marker (if equipped).

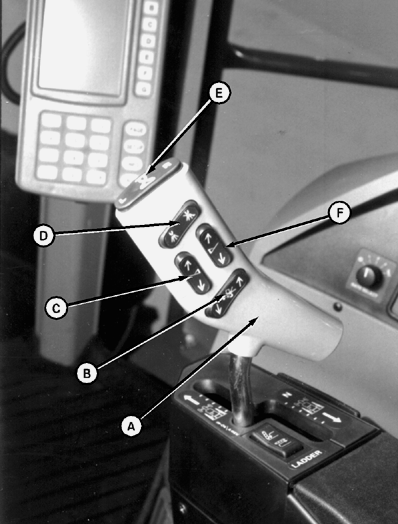

A-Hydro Lever
B-Boom Raise/Lower Switch (Roll Bias Option Switch)
C-Left-Hand Boom Fold/Level Switch
D-Spray System Master ON/OFF Switch
E-Foam Marker Switch
F-Right-Hand Boom Fold/Level Switch

NX,OM4700,AL1 -19-20NOV97-1/1
