Folding Boom

1. Press top of raise/lower switch (A) and raise boom to highest position.

A-Raise/Lower Switch

NX,OM4700,FB4 -19-28JUL97-1/3

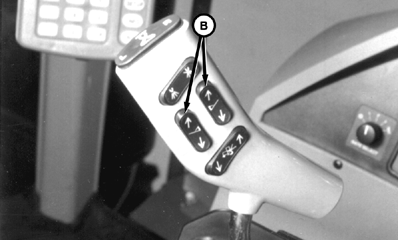

2. Press and hold fold mode switch (A) down while pressing top of fold/level switches (B) until boom is folded.

3. Release fold/level switches and fold mode switch.

4. Press top of fold/level switches until leveling cylinder is completely retracted.

NOTE: Folding boom wings before leveling wings prevents them from hitting handrails.

A-Fold Mode Switch
B-Fold/Level Switches

NX,OM4700,FB4 -19-28JUL97-2/3

5. Press bottom of raise/lower switch (A) and lower boom into boom rests.

A-Raise/Lower Switch

NX,OM4700,FB4 -19-28JUL97-3/3
