OMN303758: 4700 Self-Propelled Sprayer(N04700X006001- ), Block File: NX_OM554_LUB15_19_25FEB97.htm

Lubricate Boom Lift Arm Pivots-50 Hours

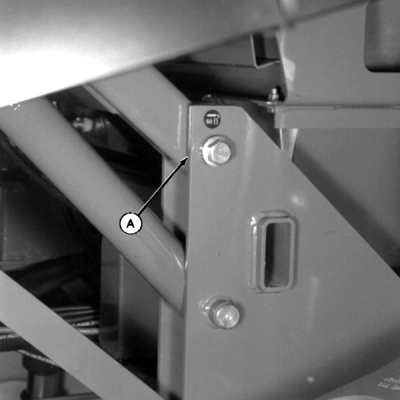

Lubricate boom lift arm pivots (A) every 50 hours.

A-Pivots

N42175IE

NX,OM554,LUB15 -19-25FEB97-1/1
