Check Front Planetary Hub Oil Level-1500 Hours

1. Park machine on a flat level surface.

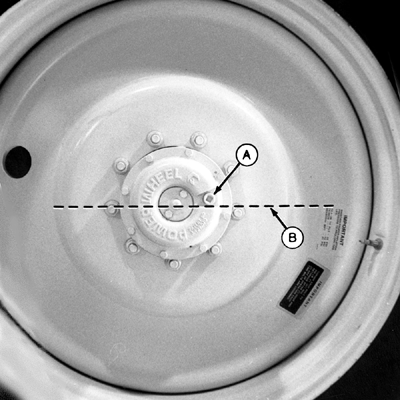

IMPORTANT: Plug must be positioned JUST above horizontal line (B). The plug must be at this position for the hub to be checked for correct oil level.

2. Remove plug (A).

NOTE: Plug is magnetic. Clean metal filings off plug.

3. If additional oil is required, fill hub until oil is level with bottom of plug hole. (See Planetary Hub Oil in this section for recommended oil.)

4. Install plug.

A-Plug
B-Horizontal Line

NX,OM554,N25B1 -19-07AUG97-1/1
