Check Rear Planetary Hub Oil Level-1500 Hours

1. Park machine on a flat level surface.

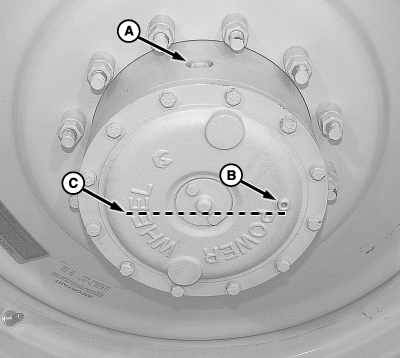

IMPORTANT: Full level plug (B) must be positioned JUST above horizontal line (C). The plug must be at this position for the hub to be checked for correct oil level.

2. Rotate hub until full level plug (B) is just above horizontal line (C).

NOTE: Plug is magnetic. Clean metal filings off plug.

3. Remove plug (B). Oil should be to the bottom of plug hole (B).

4. If additional oil is required, fill hub through fill/drain plug (A) until oil is level with bottom of plug hole (B). (See Planetary Hub Oil in this section for recommended oil.)

5. Install plug(s).

A-Plug
B-Horizontal Line

NX,OM554,N25B1 -19-07AUG97-1/1
