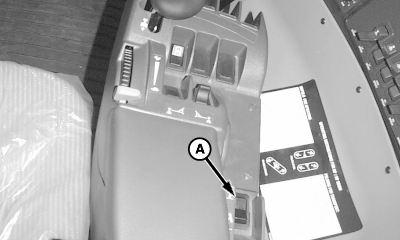

Ladder SwitchLadder will automatically raise when machine moves forward at speeds greater than 1 mph and will automatically lower when machine is shut off. Ladder will lower automatically after leaving seat for 3 seconds. Ladder may also be raised by pulling switch (A) toward rear of machine or lowered by pushing switch toward front of machine.
|
|
DP99999,000016A -19-17JAN07-1/1 |
