Replacing Front Grille Flood Light Bulbs

1. Raise hood.

2. Disconnect wiring harness plug (B).

3. Rotate light bulb (A) counterclockwise approximately 1/4 turn and remove.

4. Install light bulb in reverse order of removal.

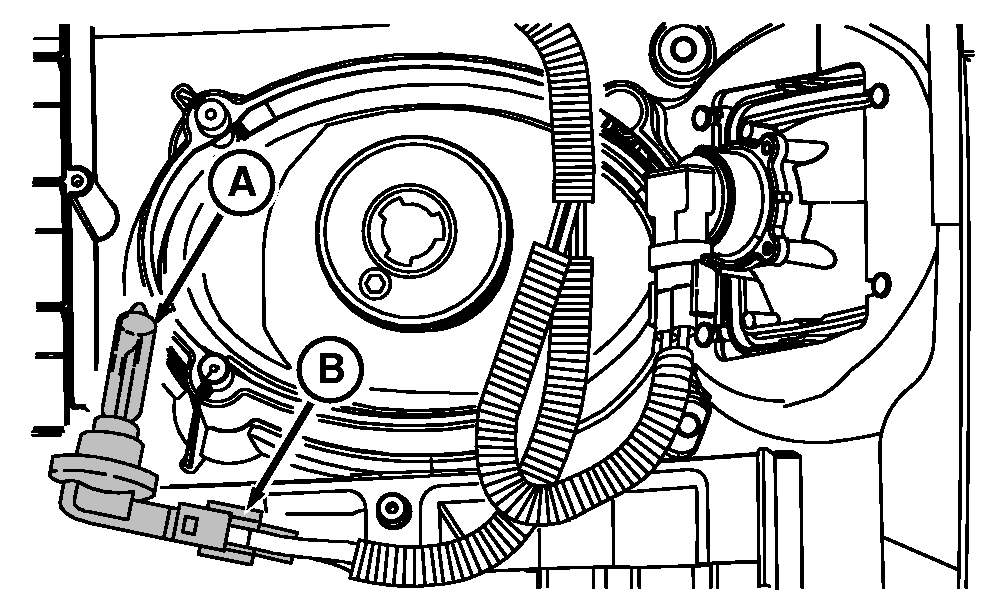

A-Light Bulb
B-Wiring Harness Plug

RXA0068499

Right-Hand Side Shown

DP99999,0000170 -19-18JAN07-1/1
