Replacing HID Driving Light Bulbs-If Equipped

IMPORTANT: Before replacing bulb reference "Handling HID Light Bulbs Safely" in this section of manual.

1. Raise hood.

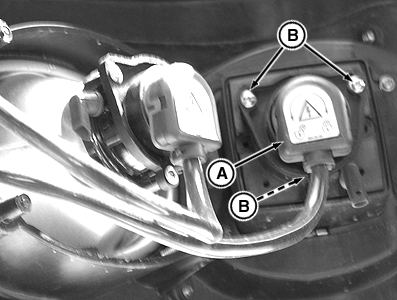

2. Twist and remove bayonet connector (A).

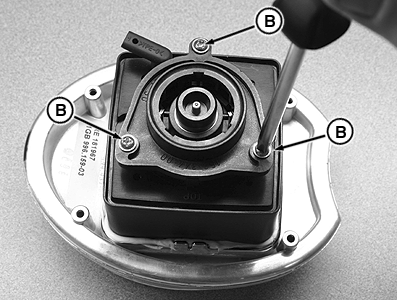

3. Remove three screws (B) and retainer, then remove light bulb (C)

4. Install new bulb in reverse order of removal.

5. Adjust headlights, if necessary. (See procedure in this section.)

A-Bayonet Connector
B-Screws

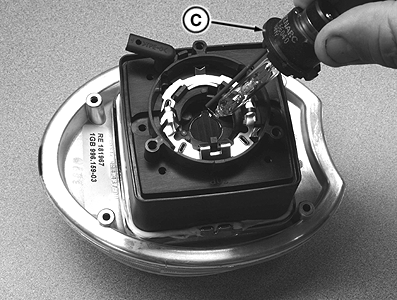

C-Light Bulb

DP99999,0000173 -19-18JAN07-1/1
