Check Engine Oil Level-Daily

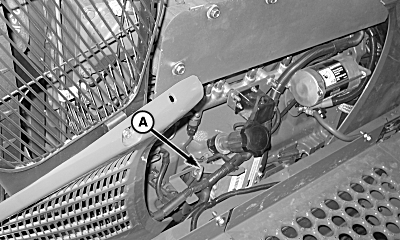

With machine parked on level ground, remove dipstick (A) and check oil level. Oil level should be between the "ADD" and the top of the cross-hatch area on dipstick. If needed, add oil recommended in Diesel Engine Oil in the Fuels And Lubricants section.

Do not operate engine with oil level below the "ADD" mark on dipstick.

A-Dipstick

DP99999,000017D -19-19JAN07-1/1
