Clean Screens and Cooling Package-As Required

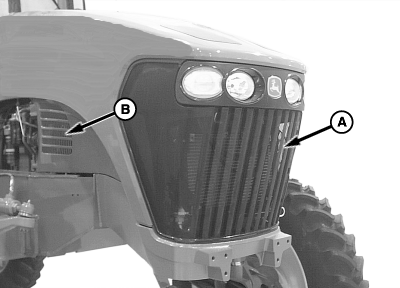

Stop engine and clean front grill screens (A) and engine side shields louvers (B) using a brush.

Clean air conditioning condenser/fuel cooler, hydraulic oil cooler, charge air cooler and radiator. (See Cleaning Cooling Package in Engine and Drivetrain section for procedure.)

A-Grill Screens
B-Engine Side Shield Louvers

DP99999,000017E -19-24JAN07-1/1
