Using Remote Terminals

Use remote terminals to provide power for operating auxiliary items; (such as using shuttle tank pump to put chemicals into eductor).

Do not use remote terminals to apply a boost charge. Boost at the starter and ground stud. (See Using A Booster Battery Or Charger in Batteries section.)

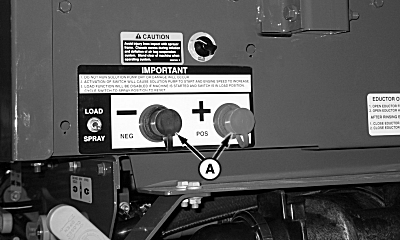

A-Remote Terminals

FS41334,00004F3 -19-03MAR08-1/1
