Adjusting Inner Fold Cylinder

1. Level and raise boom to highest position and fold in against boom stops.

2. Loosen jam nut (A) and turn cylinder rod (B) (in or out as needed) until boom is directly above boom rest (boom should deflect boom bumper approximately 6 mm (1/4 in.) and will not bind when lowered into the transport position.

3. Tighten jam nut to specification.

Specification

Inner Fold Cylinder Jam Nut -Torque 508 N·m (375 lb-ft)

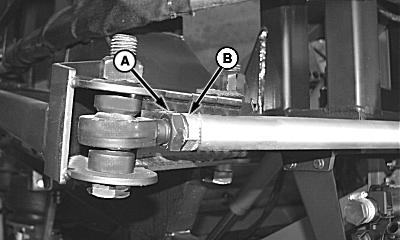

N60608


A-Jam Nut
B-Cylinder Rod

OUO6092,00003B7 -19-13DEC07-1/1
