Replace Cab Midbody, Roof-Side, Outer Floods, and Platform Light Halogen Bulb

NOTE: (For important safety information regarding halogen bulbs, see Safety Rules When Replacing Halogen Bulbs in this section before performing this procedure).

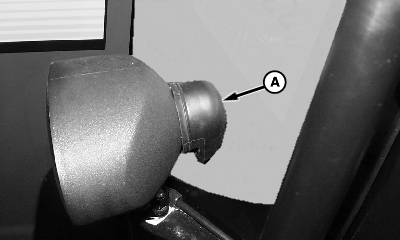

1. Remove rubber boot (A).

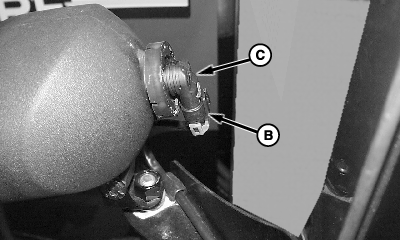

2. Disconnect harness connector (B) from bulb assembly (C).

3. Rotate bulb assembly counterclockwise approximately 1/4 turn and remove.

4. Install replacement bulb in reverse order of removal.

A-Boot
B-Harness Connector
C-Bulb Assembly

OUO6092,00003CC -19-26MAR04-1/1
