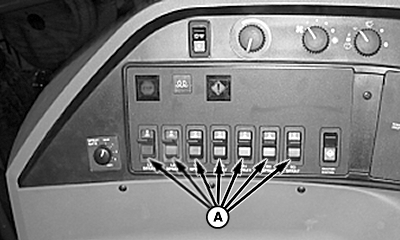

Lift boom section switches (A) to enable corresponding boom sections. Disabled sections appear as a white box with black lettering.Enabled sections (C) appear as a black box with white lettering. Enabled sections (D) that have be activated (are spraying currently) with Spray System Master ON/OFF Switch (E) show a cone beneath the section.
NOTE:
Boom sections numbered as 1 closest to center on designated side, and 3 being farthest to outside.
A-Boom Section Switches

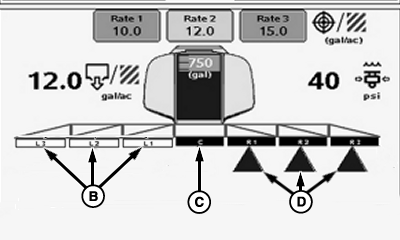

B-Sections OFF
C-Section Enabled
D-Section Spraying

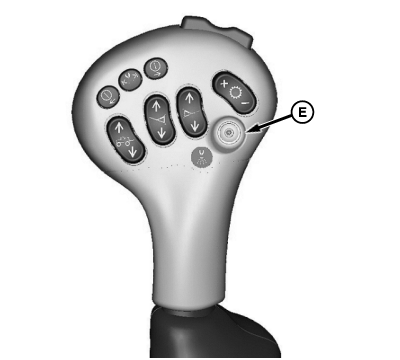

E-Master ON/Off switch
|
