Safeguarding Alternator and Regulator

1. Always disconnect battery ground strap when working with the alternator (A) or regulator.

2. Never attempt to polarize alternator to regulator.

3. Never ground the alternator field terminal or field circuit.

4. Never connect or disconnect alternator or regulator wires with battery connected or alternator operating.

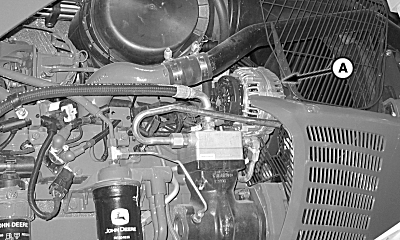

A-Alternator

N74167

OUO6092,0000CFE -19-08NOV06-1/1
