Data Card

IMPORTANT: Do not remove 12 volt power from display until the LED light is black. Prematurely removing power (green or orange light status) may cause loss of data and/or the display to lose functionality. It may take up to 20 seconds after removing key power for the LED light to completely go black. The data card should not be removed during this period also.

Data card must be in display during operation or system functionality will deteriorate.

Do not remove data card while display is reprogramming. Doing so can damage display and put software in an irrecoverable state.

Any time machine configuration changes are made, the power must be cycled on the display to allow changes to take place.

After configuring machine and implement setup, make sure key power is turned off and LED light is able to go to black before operating in the field. This will allow all setup information to be saved to the data card.

Steps for Data Card Insertion

1. Open the card slot door by pressing forward on the door latch tab, and continue to press forward until the door springs open.

2. Wait for message stating that Data Card can be ejected.

3. The side of the data card that has the ridge along the bottom edge should be facing the operator as it is inserted. It cannot be inserted with the opposite side facing the operator.

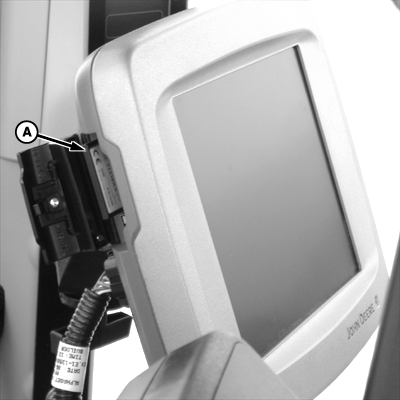

PC8865

Data Card in Display


A-Data Card

OUO6092,0000D39 -19-01FEB07-1/2

4. Press the data card into the slot until it clicks into place and pushes the eject button all the way out. It has a similar feel to inserting a PCMCIA card into a Mobile Processor.

5. Close the card slot door.

Steps for Data Card Removal

1. Open the card slot door.

2. Press the eject button located directly below the card slot inside the card slot door. This is very similar to removing a PCMCIA card from a Mobile Processor.

3. The data card will pop out enough to grab it with your fingers and remove it from the card slot.
