Sprayer Main Page Information Drop Down Lists

The sprayer main page allows operator to view four drop down lists where information is displayed. The following procedure explains how to customize the information displayed in these sections.

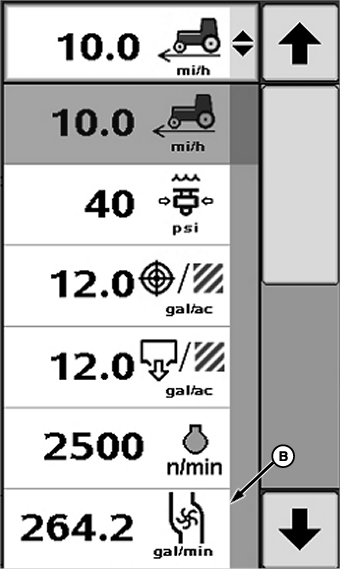

1. Select drop down box (A) to be changed. Drop down menu will appear.

2. Select new information item (B) to display from list. Drop down will close and new selection (C) will be displayed.


A-Information Drop Down Lists
B-Information Item
C-New Selection

N74381

Information Drop Down Lists

N74380
N74382

OUO6092,0000D48 -19-28MAR07-1/1
