Spray Setup
|
|

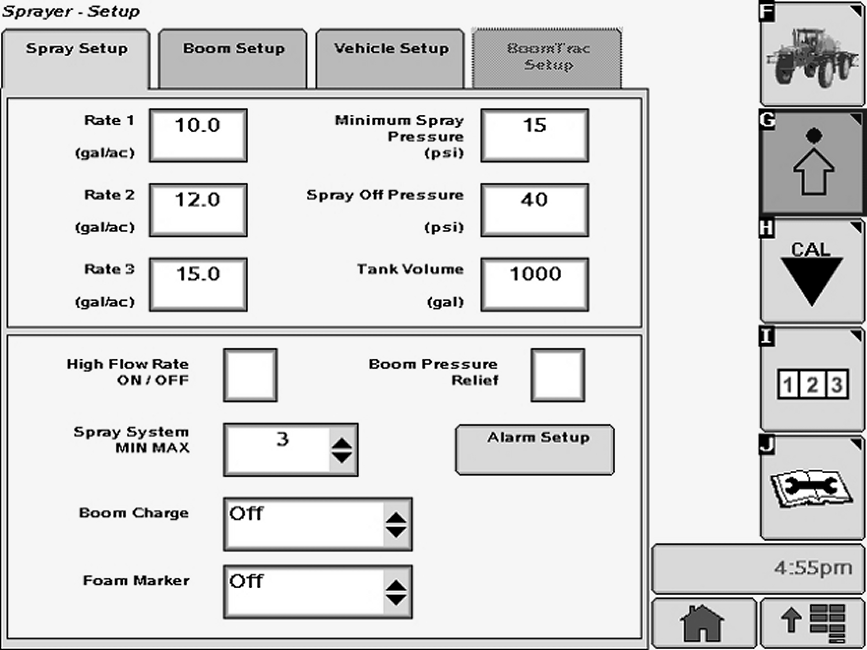

SPRAYER SETUP the following are displayed and can be changed: Application Rates 1, 2, or 3 -Where the target application rates are programmed into SprayStar. Minimum Pressure -Where the minimum pressure is programmed into SprayStar. Minimum pressure is the minimum pressure maintained while spraying. Spray Off Pressure -Where the spray off pressure is programmed into SprayStar. Spray off pressure is the |
pressure maintained while not spraying. Typically used to maintain high pressure setting for agitation when not spraying. It should not be used as a means for boom charge compensation.
Tank Volume -Where tank volume is programmed into SprayStar. High Flow Rate ON/OFF -Allows the operator to turn ON/Off the high flow rate. Spray System MIN MAX -Allows the operator to adjust the response time of the SprayStar rate control. |
OUO6092,0000D66 -19-28MAR07-1/2 |
|
Boom Charge -Allows the operator to charge the boom at an automatically calculated pressure (Boom Charge Pressure) for 3 seconds after the master ON/OFF switch (A) is pressed "ON". Foam Marker - Allows the operator to change setting of foam marker from AUTO HIGH, AUTO LOW, MANUAL HIGH, MANUAL LOW, and OFF. |
Boom Pressure Relief -Allows the operator to activate the boom pressure relief feature. Alarm Setup - Allows the operator to turn on or off a flow rate error, sections off and ladder alarms. |
OUO6092,0000D66 -19-28MAR07-2/2 |
