Setting Application Rates

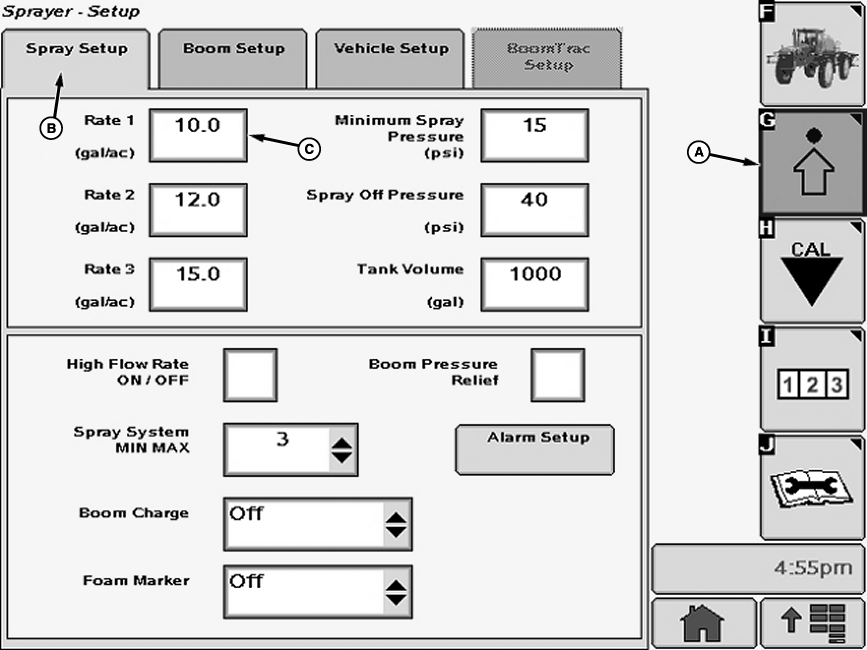

N74384


A-Setup Softkey

B-Spray Setup Tab

C-Input box



1. Select the Setup softkey (A) to view the setup menu.

2. Select the Spray Setup tab (B).

3. Select each input box (C) to be changed and enter a new value using pop-up keyboard. Select the enter button to accept new value.

OUO6092,0000D6B -19-26JAN07-1/1
