The Sprayer Response allows the operator to adjust the response time of the SprayStar rate control. This is the time it takes the actual application rate to reach the target application rate in auto mode.

The response time has five different settings. A "5" indicates the fastest response time (MAX) and a "1" indicates the slowest response time (MIN). Each step down from "5" requires more response time to adjust to the target rate.

For almost all situations, the response time should be set at "3" for all 4730 and 4830 sprayers. If a different boom is installed, or an unusual configuration on a

When To Change The Response Time Setting:

• When the target application rate is never reached increase response
• When the application rate is erratic decrease response
• When the time it takes the actual application rate to reach the target rate is quite long, approximately more than 4 seconds increase response

To change the response time do the following:

OUO6092,0000D70 -19-28MAR07-1/2

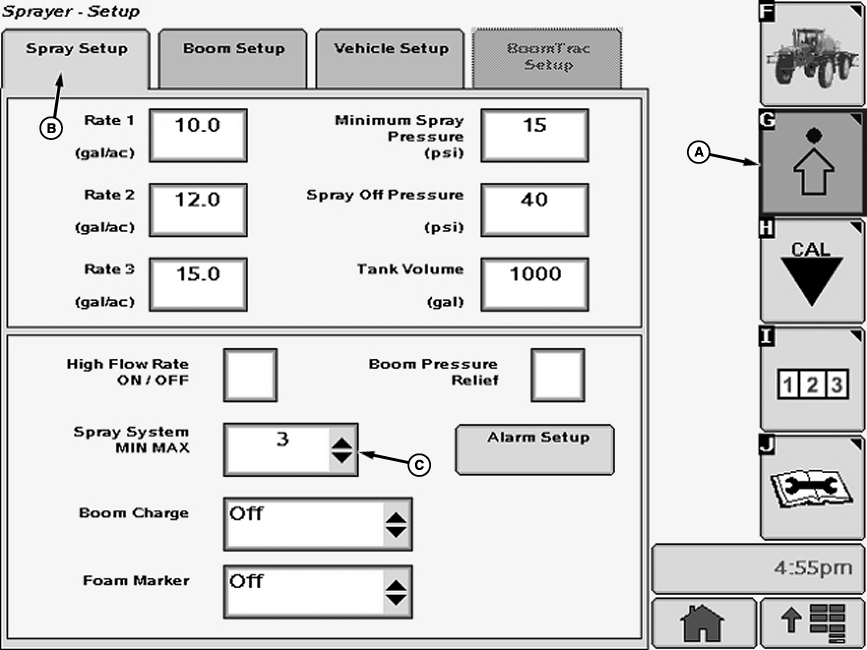

2. Select the Spray Setup tab (B).

3. Select drop-down box (C) next to "Spray System MIN MAX" and select the new value.

NOTE: "1" is the minimum sprayer response setting and "5" is the maximum sprayer setting. To choose correct setting, start with response time setting of "4". If this response time does not provide acceptable performance, repeat Steps 1-5 using a lower setting.

OUO6092,0000D70 -19-28MAR07-2/2
