Calibrating Solution Pump

The SPRAYSTAR system will automatically calibrate itself in order to provide an optimal control for a particular situation.

NOTE: Do not perform this procedure for erratic solution pump rate or pressure if the A and B numbers are within range. If A and B numbers are within range, see entries for erratic rate or pressure in Troubleshooting section.

The only time auto calibration needed is when the A and B values do not lie within their ranges or when one of the following has been replaced:

  • Solution pump/hydraulic motor assembly
  • Proportional valve
  • Hydraulic pump
  • Spray Rate Controller

NOTE: The A and B ranges are:

  • A =2500-3600

  • B =5500-7300

To auto calibrate the sprayer:

OUO6092,0000D7F -19-13NOV08-1/3

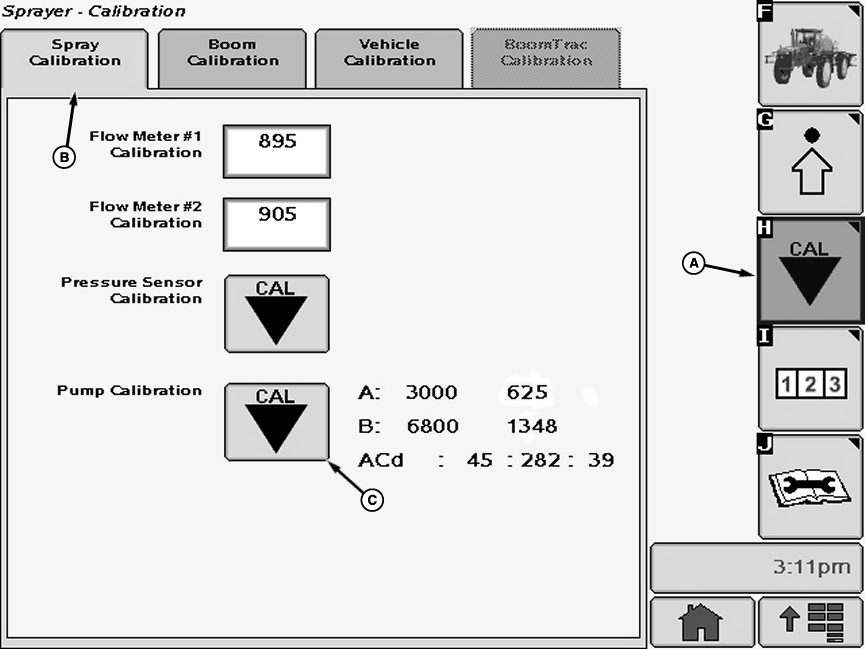

N82381


A-Calibration Softkey

B-Spray Calibration Tab

C-Calibration Icon



NOTE: Solution pump switch should be turned off to perform this procedure.

1. Select the Calibration softkey (A) to view the setup menu.

2. Select the Spray Calibration tab (B).

3. Select calibration icon (C) next to Pump Calibration. Pump Calibration will appear.

OUO6092,0000D7F -19-13NOV08-2/3

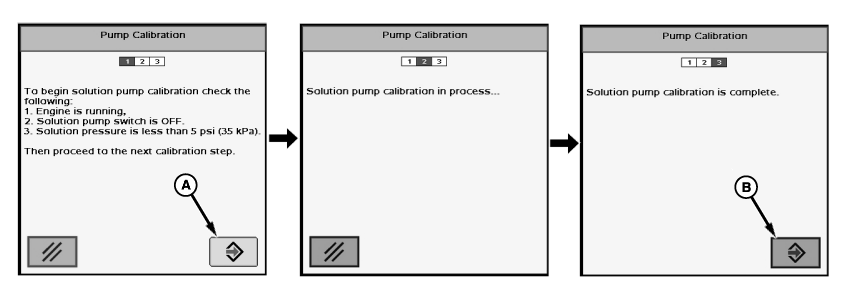

N74766


A-Enter Button

B-Enter Button



NOTE: Warm hydraulic fluid temperature to normal operating range before calibration and fill solution tank with enough water or solution to keep pump from running dry.

4. Follow instructions on first screen. When finished select "Enter" button (A) to proceed to next screen.

NOTE: Pump calibration will take approximately 1-2 minutes. The solution pump will turn off when auto calibration is done.

5. "Solution pump calibration is complete." will be displayed. Press enter button (B) to return to Spray Calibration tab.

OUO6092,0000D7F -19-13NOV08-3/3
