Enabling High Flow Rate

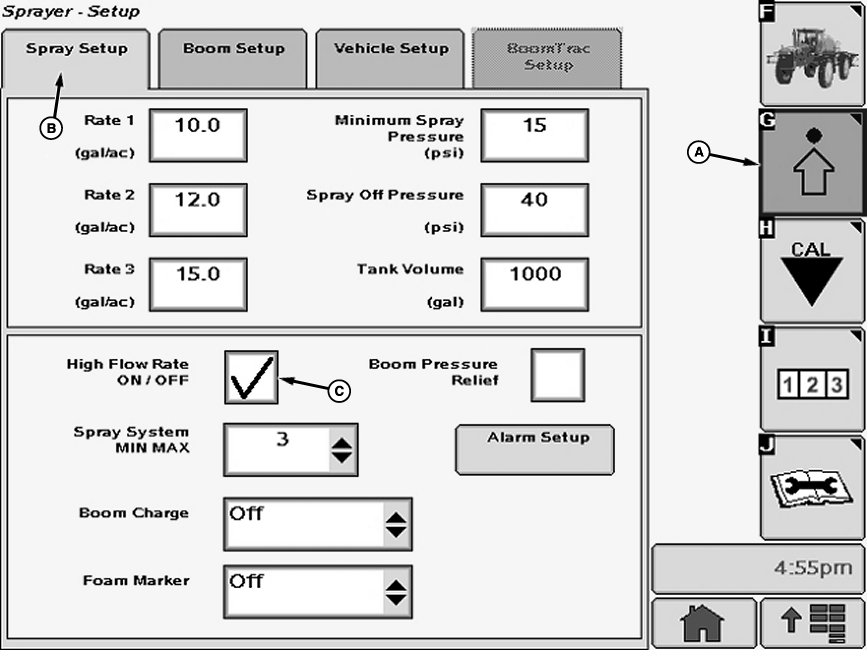

N74744


A-Setup Softkey

B-Spray Setup Tab

C-Check Box



1. Select the Setup softkey (A) to view the setup menu.

2. Select the Spray Setup tab (B).

NOTE: A check mark in the box indicates that High Flow Rate is activated.

3. Select check box (C) next to "High Flow Rate ON / Off" and a check will appear inside box activating item. To deactivate a check box, touch check box to remove the check.

NOTE: When High flow rate is turned "ON" in SprayStar the flowmeter valve must be opened on boom. If SprayStar and flowmeter valve settings do not agree:

  • Flowmeter valve open but SprayStar High Flow "OFF " - will overapply

  • Flowmeter valve closed but SprayStar High Flow "ON " - will underapply

OUO6092,0000D80 -19-13AUG07-1/1
