Diagnostic Readings

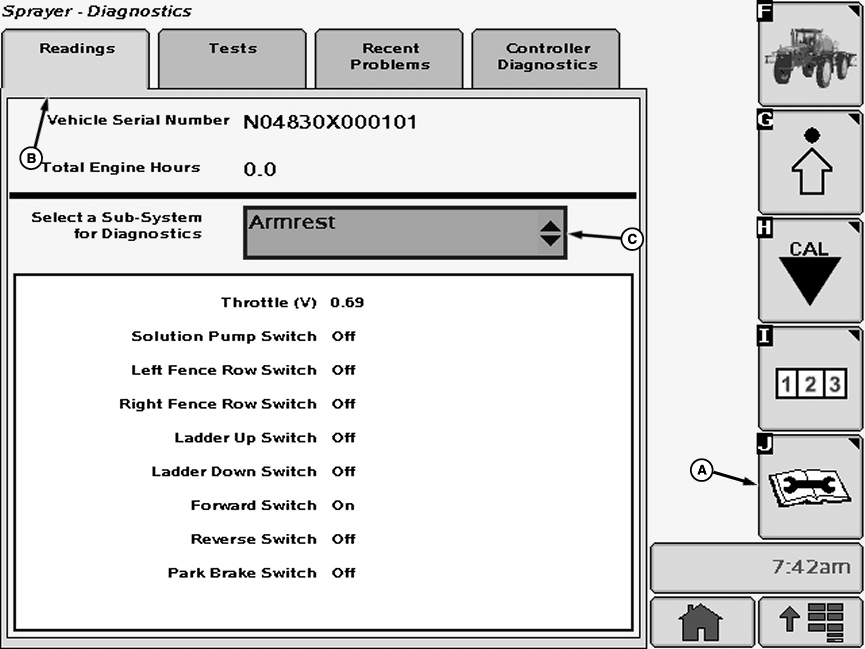

N74858


A-Diagnostics Softkey

B-Readings Tab

C-Drop-Down Menu



1. Select the Diagnostics softkey (A) to view the sprayer diagnostics menu.

2. Select the "Readings" tab (B).

3. Select drop-down menu (C) next to "Select a Sub-System for Diagnostics" and select between:

  • Armrest
  • Boom Hydraulics
  • Cab
  • Hydro Handle
  • Drive Train
  • Engine
  • Vehicle
  • Solution System
  • Spray Valves

OUO6092,0000D85 -19-06FEB07-1/1
