Recent Problems

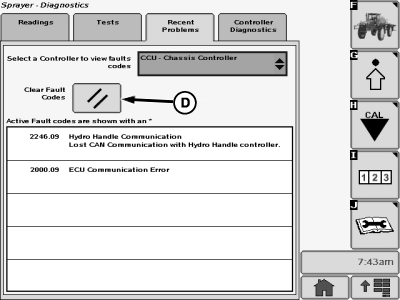

To view fault codes:

1. Select the Diagnostics softkey (A) to view the sprayer diagnostics menu.

2. Select the "Recent Problems" tab (B). A list of controllers with active fault codes will be listed on this page. Select a controller from the drop-down menu (C) to view or erase codes for that specific controller. Press the "Clear Fault Codes" button (D) to clear fault codes for the selected controller.


A-Diagnostics Softkey
B-Recent Problems Tab
C-Drop-Down Menu
D-Clear Fault Codes Button

N74860
N75072

OUO6092,0000D87 -19-06FEB07-1/1
