Programming SprayStar for Band Spraying
|
|

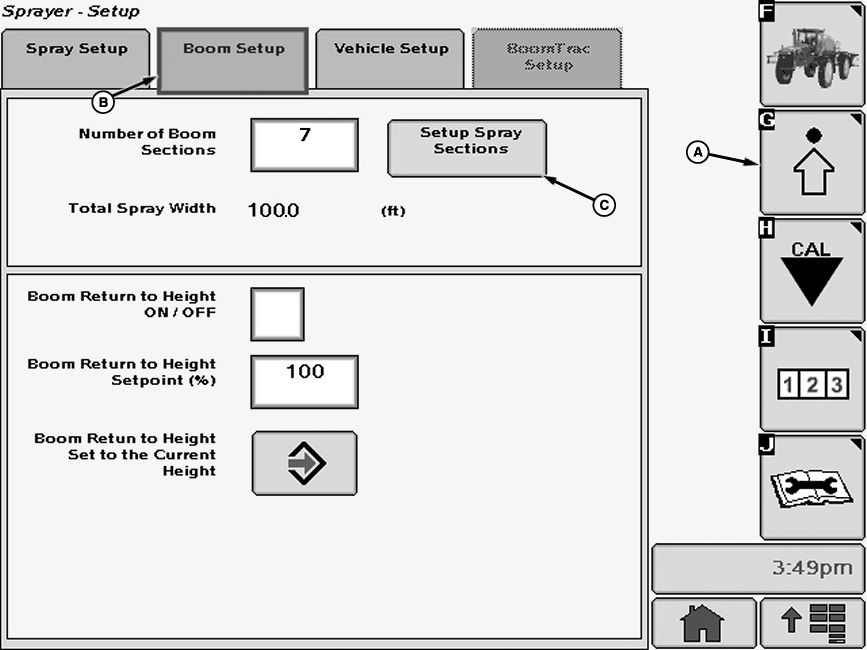

The SprayStar boom sections setup is programmed differently for band spraying than for broadcast spraying. 1. Select the Setup softkey (A) to view the setup menu. |
2. Select the Boom Setup tab (B). 3. Press "Setup Spray Sections" button (C). The Setup Spray Sections screen will appear. |
OUO6092,0000D95 -19-28MAR07-1/2 |
|
4.

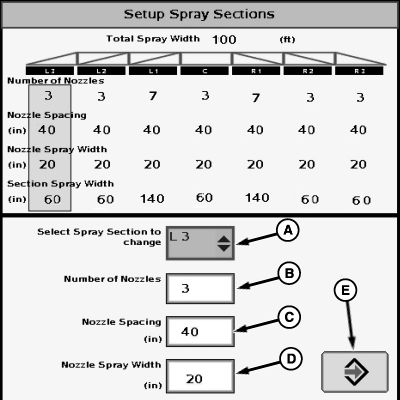

Select drop-down box (A) next to "Select Spray Section to change" and select section to change from menu.
5. Enter number of crop rows the boom section will be banding instead of number of nozzles the boom section has in location (B) using pop-up keyboard. 6. Enter crop row width instead of nozzle spacing in location (C) using pop-up keyboard. 7. Enter band width instead of spray width in location (D) using pop-up keyboard. Select the Enter button to accept new value. (Repeat for each section on boom.) NOTE: Section spray width and total width are calculated automatically from above settings. NOTE: Make sure target application rate is for banded area and not covered area. 8. The acre counter on both Sprayer Main Page and in Job Summaries records covered acres and not banded acres. The application rate in Job Summaries is calculated by total volume applied divided by covered acres, NOT banded acres. When band spraying, the application rate in Job Summaries will always be a percentage of the target rate. To determine if application rate in Job Summaries is correct, use the following equation: Job Summaries Application Rate = Target Application Rate x Band Width ÷ Row Width NOTE: The sample SETUP screen on this page has been programmed for banding 40 in. rows with a banding width of 20 in. |
|
OUO6092,0000D95 -19-28MAR07-2/2 |
