Message Center Cautions and Warnings

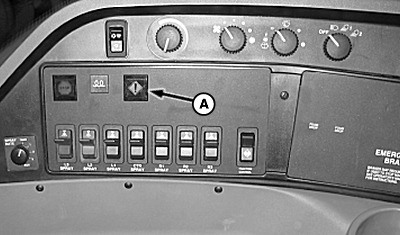

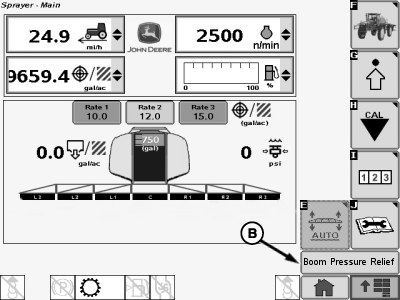

The caution lamp (A) lights on the right-hand console. A caution message (B) appears in the display's Message Center. The message remains visible as long as the condition persists.

An audible alarm is sounded when the continuous caution first appears.

Examples:

BOOM PRESSURE RELIEF WARNING
PARK BRAKE WARNING
EMERGENCY BRAKE CAUTION
LOW FLOW WARNING
HIGH FLOW WARNING
BOOM SECTIONS OFF WARNING
SPRAY DISABLED WARNING
REMOTE LOAD DISABLED WARNING
PUMP MAX REACHED WARNING
HIGH FLOW SETUP WARNING
SERVICE 50 DUE
SERVICE 100 DUE
SERVICE _250 DUE
SERVICE 500 DUE

A-Caution Lamp
B-Caution Message
