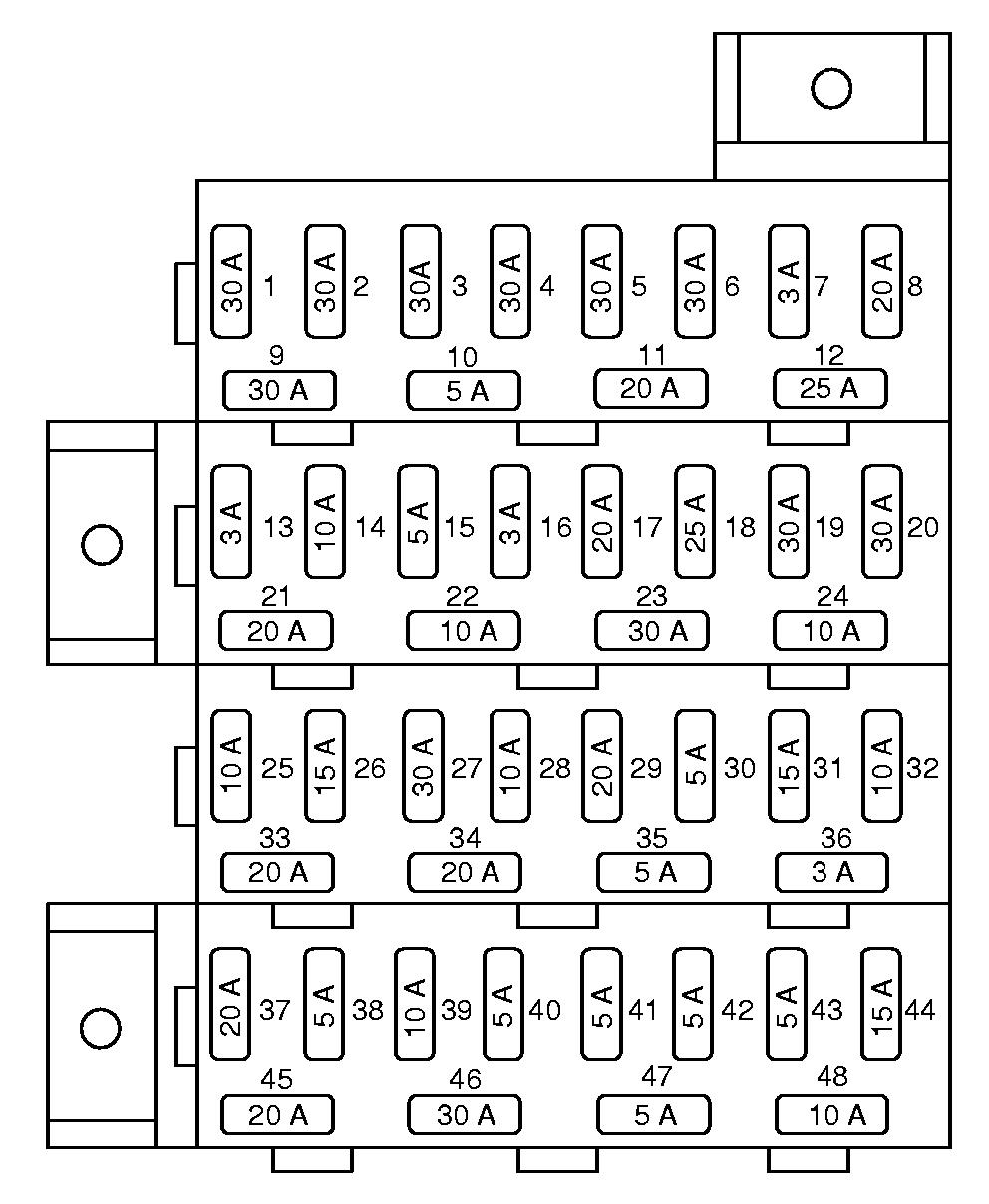

Load Center Fuses
1-Key Switch (30 amp)
2-Accessories (30 amp)
3-Lights and Horn (30 amp)
4-Road High/Low Lights (30 amp)
5-Platform Lights (30 amp)
6-Cab Roof and Fill Station Lights (30 amp)
7-BHC Memory (unswitched) (3 amp)
8-Brake, Hazard and Beacon Lights (20 amp)
9-ELX2 (30 amp)
10-ECU (switched) (5 amp)
11-Windshield Wiper (20 amp)
12-BHC Logic and Valve Power (25 amp)
13-Armrest and Hydro Handle (3 amp)
14-Load Sense Jam (10 amp)
15-Wheel Speed Sensor (5 amp)
16-Radio (3 amp)
17-Auxiliary Plug/Accessory (20 amp)
18-Pressurizer Blower and ATC (25 amp)
19-Recirculator and Pressurizer Blower (30 amp)
20-Seat (30 amp)
21-Ignition Switch (20 amp)
22-RCD, CAN2, GPS, UIM (10 amp)
23-Hood Lights (Standard) (30 amp)
24-Air Conditioning (10 amp)
25-Turn Signal Switch (10 amp)
26-Diff Lock/Traction Control and Shift (15 amp)
27-Hood Lights (Optional) (30 amp)
28-Park Brake (10 amp)
29-Auxiliary Plug/Battery (20 amp)
30-Dome Lights (5 amp)
31-CCU Memory, RCD, GPS, SA (unswitched) (15 amp)
32-Lighter (10 amp)
33-LH Solution Valve (20 amp)
34-RH Solution Valve (20 amp)
35-SSU/AutoTrac Memory (unswitched) (5 amp)
36-CAN1 (3 amp)
37-CCU Driver (switched) (20 amp)
38-CCU Logic (switched) (5 amp)
39-SSU/AutoTrac Driver (switched) (10 amp)
40-SSU/AutoTrac Logic and ATC (switched) (5 amp)
41-Remote Load Switch and Flowmeters (5 amp)
42-Spray Switches and Hydraulic Pump Switch (5 amp)
43-Cab Blower and Wiper Relays (5 amp)
44-Radio (15 amp)
45-Steering Lights (20 amp)
46-ELX1 (30 amp)
47-Agitation (5 amp)
48-Foam Marker (10 amp)
|
|
