Filling Solution Tank with Sprayer Pump Through Eductor

causym CAUTION: Read carefully the directions printed on the chemical manufacturer's labels before handling chemicals or you may be exposed to hazardous materials which could poison and injure you.

IMPORTANT: Do not add chemical to solution tank until just before field use. Follow the chemical manufacturer's instructions for mixing the spray solution to obtain the desired application rate and effect.

1. Operate engine at 1800 rpm.

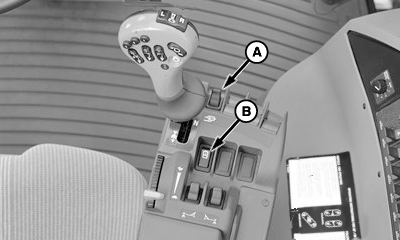

2. Turn off solution pump switch (A) in armrest console.

3. Verify agitation switch (B) is in "ON" position and adjusted to desired agitation level , if necessary. (See Mixing Solution in Tank in this section.)

N67623


A-Solution Pump Switch
B-Agitation Switch

OUO6092,0000E07 -19-29MAY07-1/7

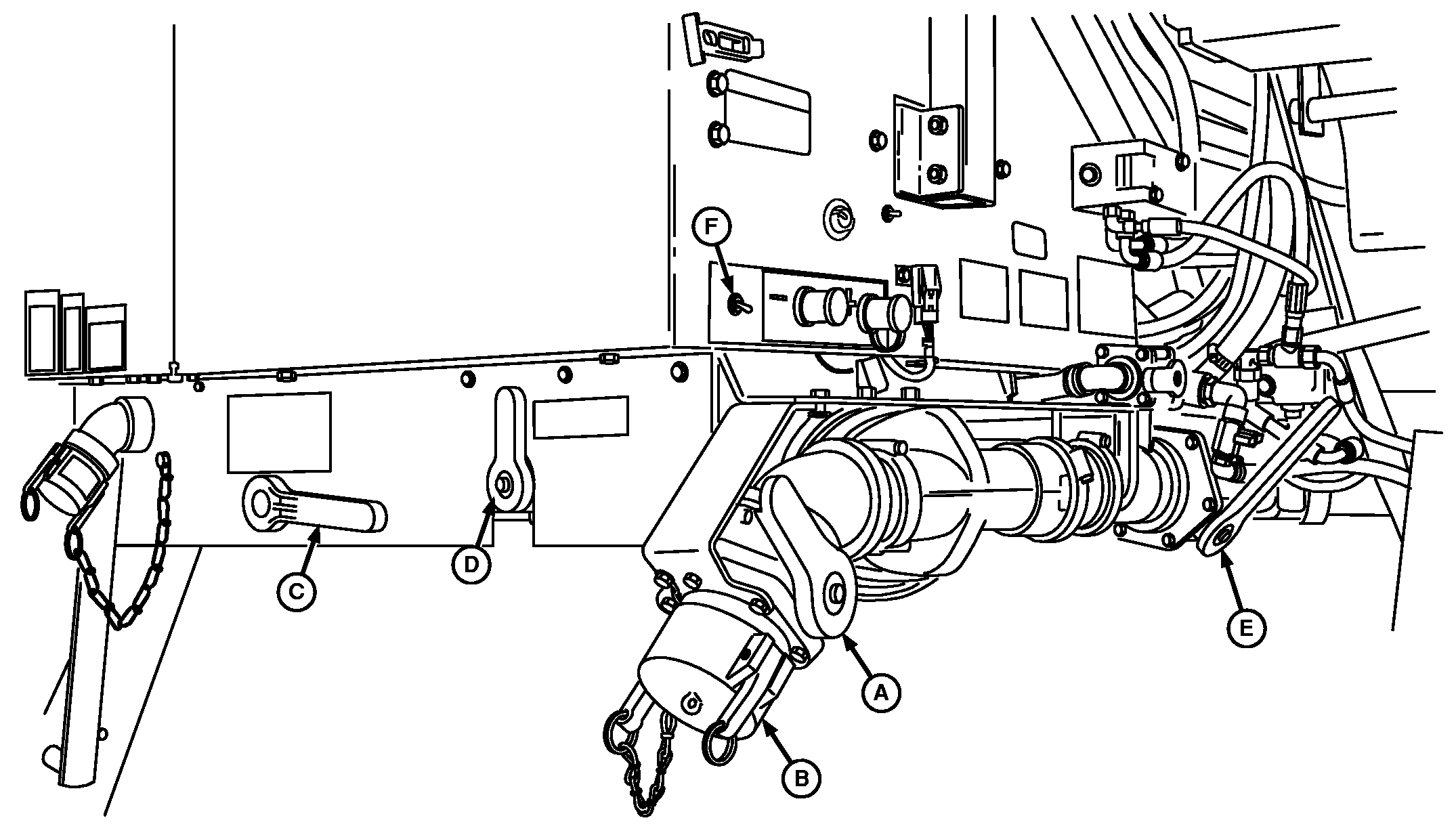

N67624


A-Quik-Fill Valve
B-Cap


C-Suction Valve
D-Pressure Valve


E-Bypass Valve


F-Remote Solution Pump Switch

causym CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap, make sure Quik-Fill valve is turned off.

4. Verify Quik-Fill valve closed.

5. Open lock levers and remove cap (B).

6. Connect nurse tank fill hose to Quik-Fill adapter and close lock levers.

7. Turn suction valve (C) to "SOLUTION TANK" position.

8. Turn pressure valve (D) to "SPRAY" position.

9. Turn bypass valve (E) to "SPRAY" position.

10. Move remote solution pump switch to "LOAD" position and add approximately 379 L (100 gal) water.

NOTE: When using remote solution pump switch (F), pump is designed to come up to operating speed slowly. Engine speed will automatically increase to 1800 rpm.

OUO6092,0000E07 -19-29MAY07-2/7

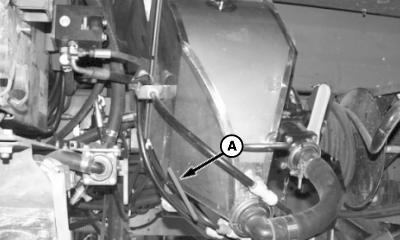

11. Slightly raise eductor and pull handle (A) to unlatch eductor.

12. Lower eductor and raise lid.


A-Handle

N63533

OUO6092,0000E07 -19-29MAY07-3/7

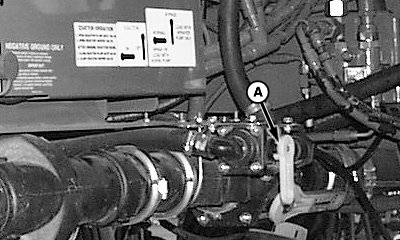

NOTE: The eductor flow rate valve (A) is a variable rate valve that controls the flow rate of the eductor. The farther "ON" the valve the greater suction created for the eductor.

13. Turn eductor flow rate valve (A) to full "ON" position.


A-Eductor Flow Rate Valve

N63538

OUO6092,0000E07 -19-29MAY07-4/7

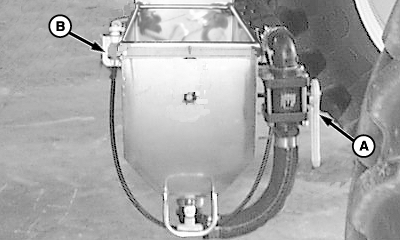

14. Open eductor hopper valve (A) (handle parallel with solution hose) to allow chemicals to be drawn from eductor hopper.

15. Pour chemicals into eductor.

16. Open eductor rinse valve (B) (turn clockwise) to rinse eductor hopper.

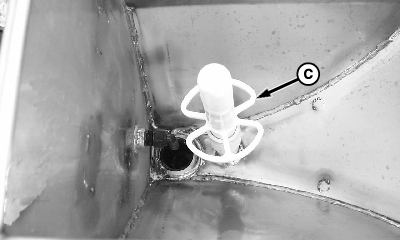

17. Place chemical container over rinse nozzle (C) in tank and push down on container to rinse.

18. Close eductor rinse valve.


A-Eductor Hopper Valve
B-Eductor Rinse Valve
C-Rinse Nozzle

N63539
N63540

OUO6092,0000E07 -19-29MAY07-5/7

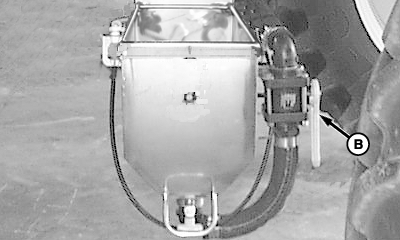

19. After verifying eductor is empty, close eductor flow rate valve (A).

20. Close eductor hopper valve (B).

21. Place lid back on hopper and lift eductor back to its original position.


A-Eductor Flow Rate Valve
B-Eductor Hopper Valve

N63538
N63541

OUO6092,0000E07 -19-29MAY07-6/7

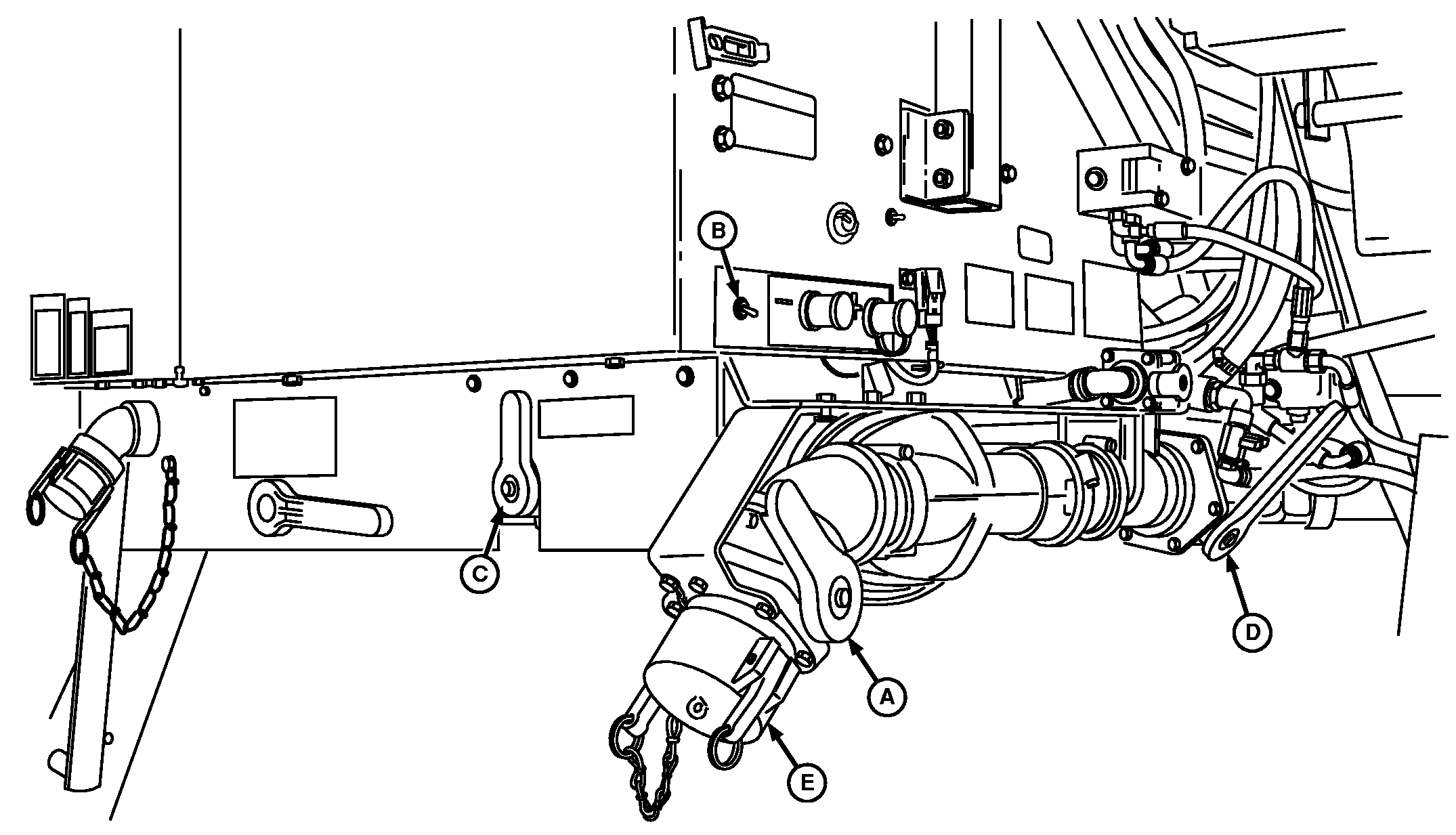

N67622


A-Quik-Fill Valve
B-Remote Solution Pump Switch


C-Pressure Valve


D-Bypass Valve


E-Cap

IMPORTANT: Failure to perform the following steps in order can create pressure spikes in the solution system that may cause pressure transducer failure and other component damage.

22. After solution tank has filled, close Quik-Fill valve (A).

23. Move remote solution pump switch (B) to "SPRAY" position.

24. Turn pressure valve (C) to "SPRAY" position.

25. Turn bypass valve (D) to "NORMAL" position.

26. Remove fill hose from Quik-Fill adapter and replace cap (E).

OUO6092,0000E07 -19-29MAY07-7/7
