Filling Solution Tank with Nurse Tank Pump

N67625

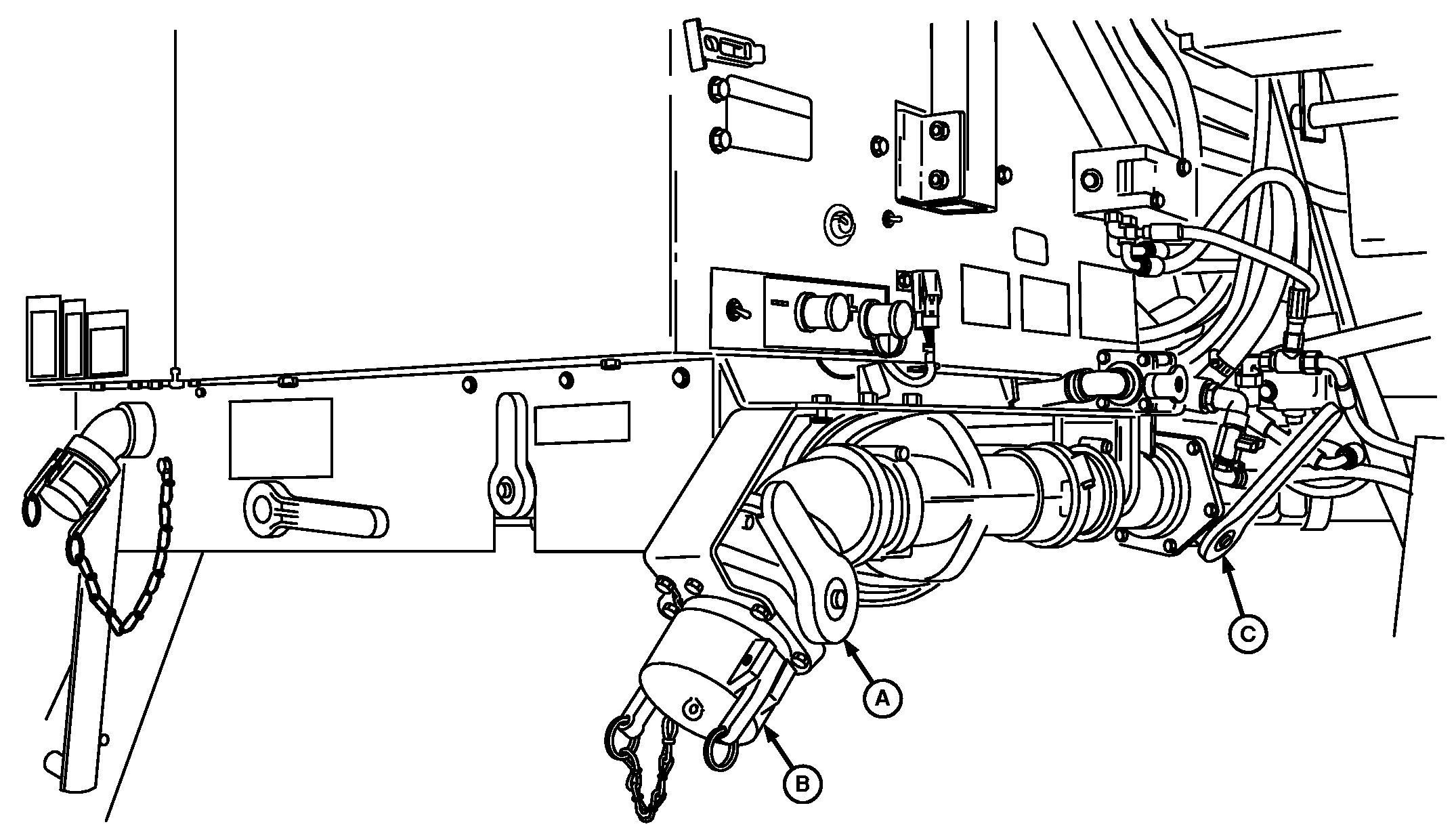

A-Quik-Fill Valve

B-Cap

C-Bypass Valve



causym CAUTION: Read carefully the directions printed on the chemical manufacturer's labels before handling chemicals or you may be exposed to hazardous materials which could poison and injure you.

IMPORTANT: Do not add chemical to solution tank until just before field use. Follow the chemical manufacturer's instructions for mixing the spray solution to obtain the desired application rate and effect.

causym CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison

causing serious injury or death to you or others. Before removing Quik-Fill cap, make sure Quik-Fill valve is turned off.

1. Verify Quik-Fill valve closed.

2. Open lock levers and remove cap (B).

3. Connect nurse tank fill hose to Quik-Fill adapter and close lock levers.

4. Turn bypass valve (C) to "NORMAL" position.

OUO6092,0000E08 -19-29MAY07-1/2

5. Close strainer shut-off valve (A) when filling sprayer using nurse system pump to avoid air being forced into boom.

6. Turn on nurse tank pump and open Quik-Fill valve.

7. After solution tank has filled, close Quik-Fill valve.

8. Turn off nurse tank pump.

9. Remove fill hose from Quik-Fill adapter and replace cap.

10. Open strainer shut-off valve.

N73111

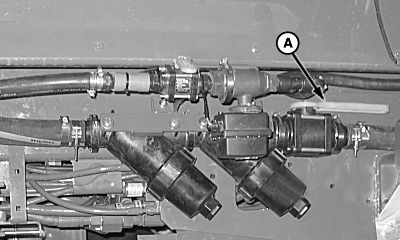

A-Strainer Shut-Off Valve
