NOTE: With solution tank filled and solution pump primed, complete the following steps to thoroughly mix chemicals.

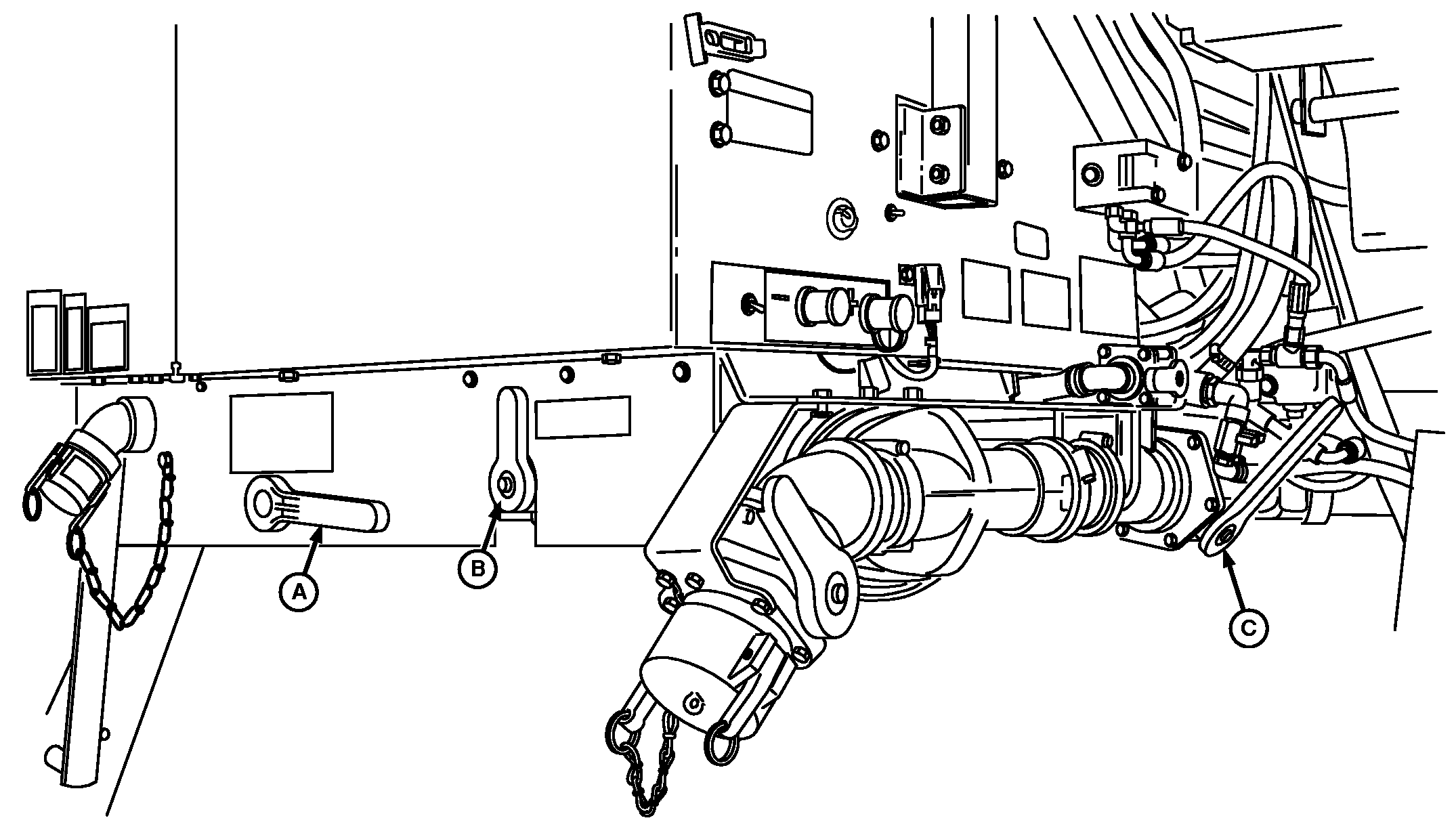

1. Turn suction valve (A) to "SOLUTION TANK" position.

2. Turn pressure valve (B) to "SPRAY" position.

3. Turn bypass valve (C) to "NORMAL" position.

OUO6092,0000E0A -19-08JUN07-1/3

NOTE: Amount of agitation is determined by how far agitation shut-off valve is open and where the spray off pressure is set.

Valve is fully open when handle is parallel to hose.

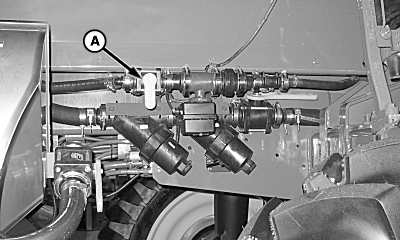

4. Open agitation flow rate valve (A) (located below solution tank outside mainframe on left-hand side of machine) to desired setting.

5. Enter desired agitation pressure as spray off pressure in SprayStar. (See Setting Spray Off Pressure in SprayStar System section.)

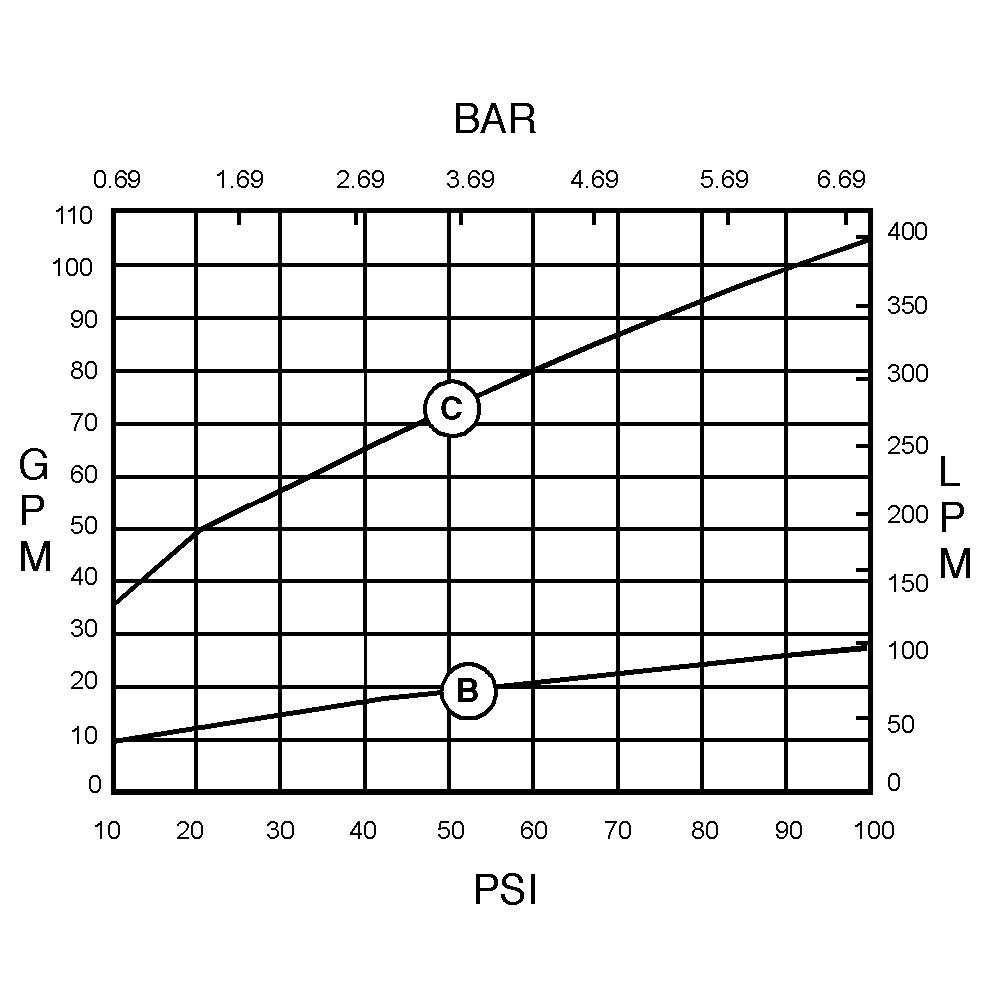

NOTE: Table illustrates flow rate (gpm) at desired spray off pressure when agitation control valve is fully open.

Input (B) is the amount of solution coming from solution pump.

Venturi in nozzle pulls chemical to nozzle. Output (C) is a combination of the input from the solution pump and what is drawn in from the venturi.

A-Agitation Flow Rate Valve
B-Input From Solution Pump
C-Output From Nozzle

OUO6092,0000E0A -19-08JUN07-2/3

7. Push agitation switch (B) forward to open electric agitation valve.

8. Mix solution thoroughly before operating in the field.

NOTE: When not spraying agitation pressure will be the same as spray off pressure entered into SprayStar. To increase agitation, increase spray off pressure setting. Reset spray off pressure (if changed) before spraying in the field.

To minimize foaming run at lower agitation rate.

Turn off agitation when tank volume drops below 378.5 L (100 gal) to prevent foaming and air in system.

A-Solution Pump Switch
B-Agitation Switch

OUO6092,0000E0A -19-08JUN07-3/3
