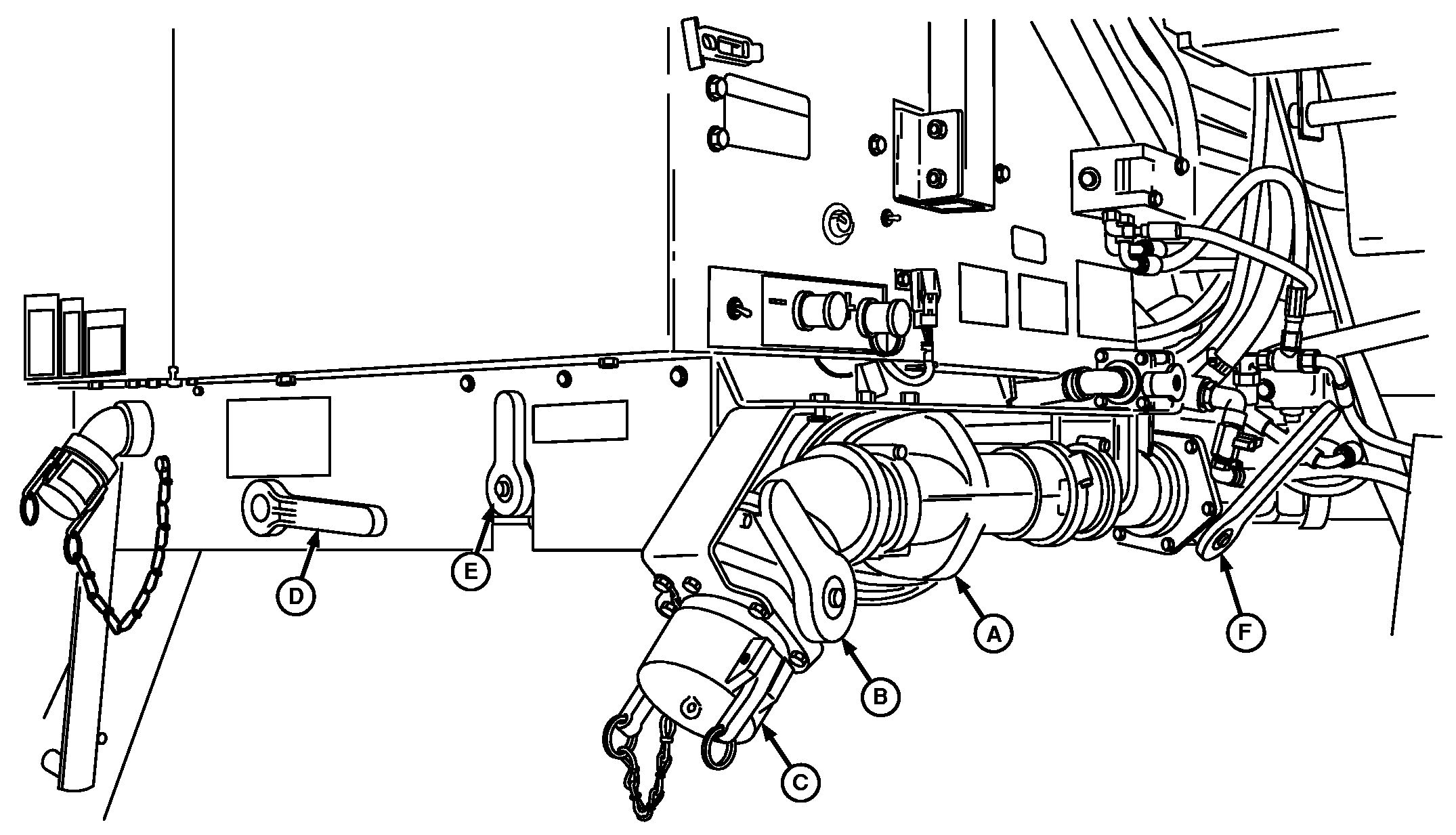

A-Fill Strainer
B-Quik-Fill Valve

C-Cap
D-Suction Valve

E-Pressure Valve

F-Bypass Valve

CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Drain solution and clean strainer in an area where people, animals, vegetation and water supply etc., cannot be contaminated.

NOTE: Clean fill strainer (A) periodically.

CAUTION: Quik-Fill valve (B) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap, make sure Quik-Fill valve is turned off.

1. Verify Quik-Fill valve is turned off.

2. Open lock levers and remove cap (C).

3. Verify suction valve (D) in straight down position.

4. Verify pressure valve (E) in "SPRAY" position.

5. Turn bypass valve (F) to "BYPASS" position.

CAUTION: Do not drain solution onto the ground. Drain into a container. Drain solution in an area where people, animals, vegetation and water supply, etc., cannot be contaminated.

6. Open Quik-Fill valve and drain solution into a bucket or suitable container.

7. After solution has drained, close Quik-Fill valve and replace cap.

OUO6092,0000E10 -19-29MAR07-1/2

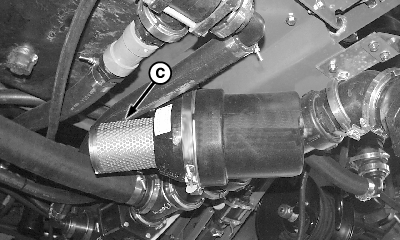

9. Pull strainer (C) out of strainer body.

10. Empty strainer and rinse with clean water.

11. Insert strainer into strainer body.

NOTE: Verify strainer properly seated in the strainer body before cap installed. If strainer not fully seated, cap and o-ring may not seat properly allowing leaks to occur.

12. Install cap on strainer body.

13. Tighten cap using slip-joint pliers or equivalent tool and check for leaks.

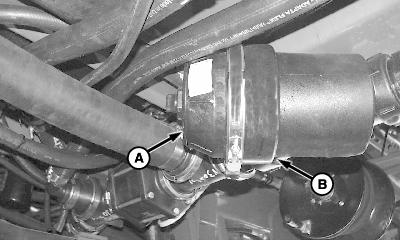

A-Cap
B-Strainer Body
C-Strainer

OUO6092,0000E10 -19-29MAR07-2/2
